SKU: 3801.B.2RSR.TVH.EU

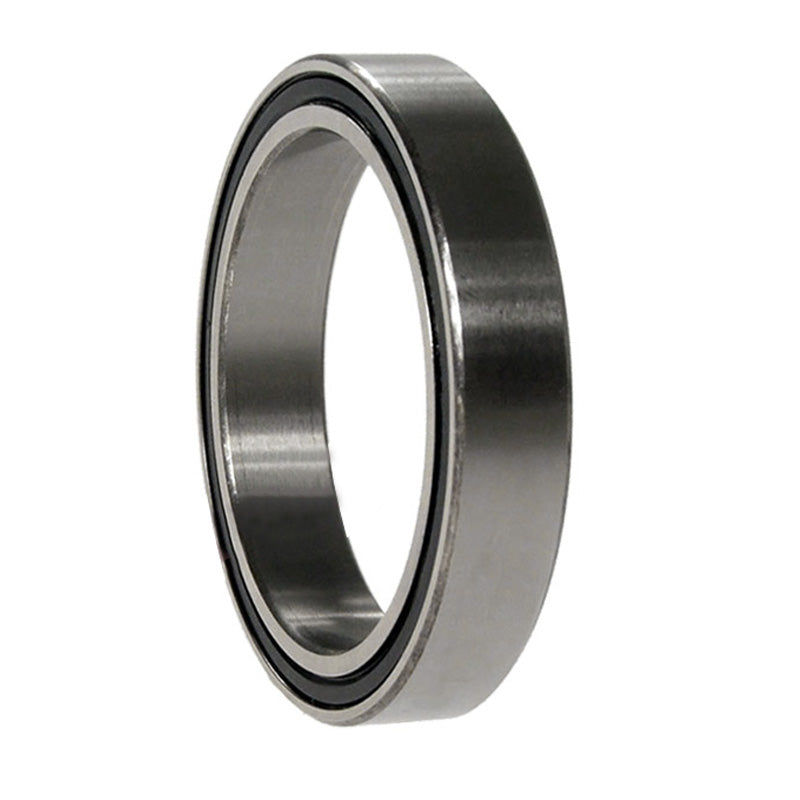

Budget 3801B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 12x21x7mm
Budget 3801B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 12x21x7mm
Regular price
€11,23
ex VAT
Regular price
Sale price
€11,23
ex VAT
Equivalent to: 5801B2RSRTVH
In stock
Price Break
10+
€8,55
19+
€8,07
29+
€7,97
39+
€7,88
49+
€7,78
74+
€7,69
99+
€7,21
199+
€7,11
249+
€7,01
499+
€6,92
999+
€6,72
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Equivalent: 5801B2RSRTVH
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 21mm |
| B | 7mm |
| a | 8.9mm |
| d1 max | 15mm |
| Da max | 19mm |
| da min | 14mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.008 kg |
| Dynamic load Cr | 2190 N |
| Static load Cor | 1550 N |
| Fatigue limit load Cur | 79 N |
| Reference speed | 15000 rpm |
| Limiting Speed | 18100 rpm |
