SKU: 361203-EU

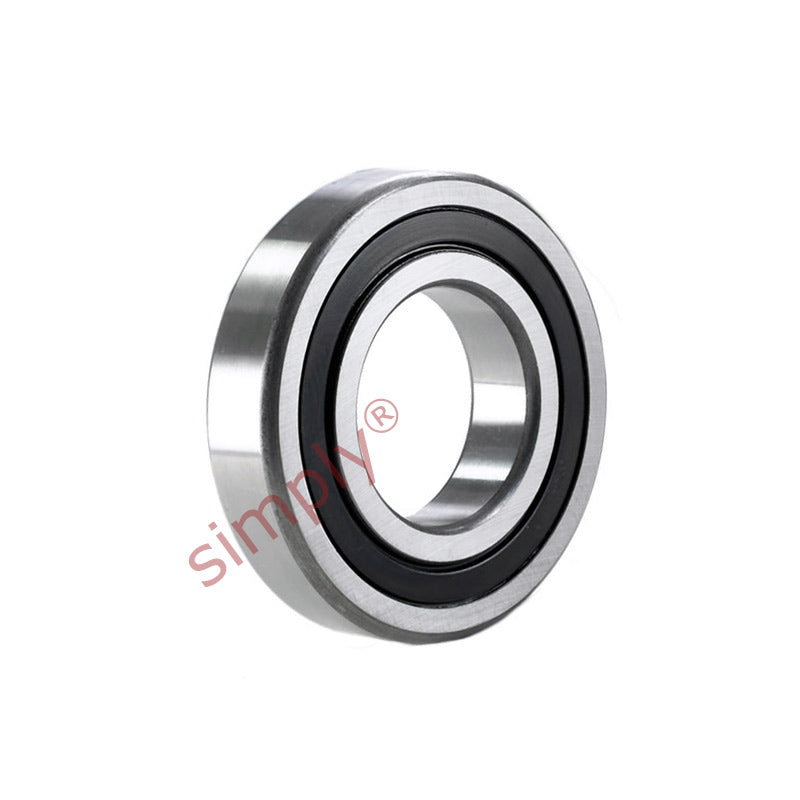

361203 Budget Rubber Sealed Single Row Cam Roller 17x47x12mm
361203 Budget Rubber Sealed Single Row Cam Roller 17x47x12mm
Regular price
€13,38
ex VAT
Regular price
Sale price
€13,38
ex VAT
Equivalent to: LR203NPP LR2032RSRX LR203X2RSR
In stock
Price Break
10+
€10,19
19+
€9,62
29+
€9,50
39+
€9,39
49+
€9,27
74+
€9,16
99+
€8,59
199+
€8,47
249+
€8,36
499+
€8,24
999+
€8,01
Share this product
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
Equivalent: LR203NPP LR2032RSRX LR203X2RSR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 12mm |
| d1 | 21.6mm |
| D1 | 32.9mm |
| r1r2 min | 0.6mm |
| Limiting speed | 8500 rpm |
| Weight | 0.11 kg |
| Dynamic load C | 8.84 kN |
| Static load Co | 4.15 kN |
| Fatigue load limit Pu | 0.176 kN |
| Maximum dynamic radial load Fr | 8.15 kN |
| Maximum static radial load For | 11.6 kN |
