SKU: 35-1-SYN-NO26-RENOLD

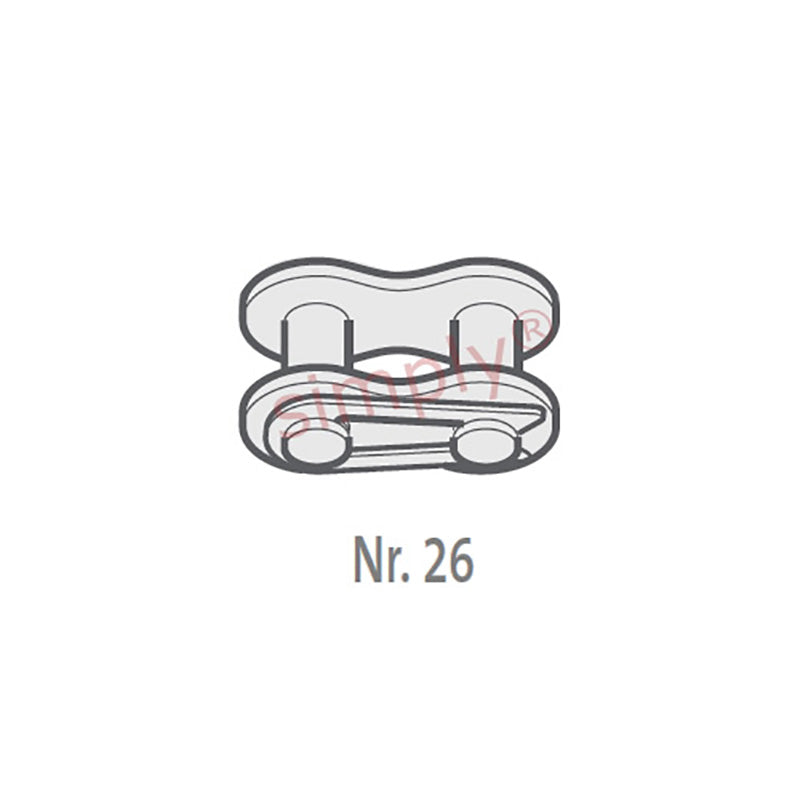

Renold Synergy 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold Synergy 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
€14,79
ex VAT
Regular price
Sale price
€14,79
ex VAT
In stock
Price Break
10+
€13,16
19+
€12,42
29+
€12,28
39+
€12,13
49+
€11,98
74+
€11,83
99+
€11,09
199+
€10,94
249+
€10,80
499+
€10,65
999+
€10,35
Couldn't load pickup availability
Description
Description
| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.68mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.6mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.29mm |
| Pin Diameter max (G) | 3.59mm |
| Pin Length max (H1) | 12mm |
| Connecting Link Extension max (J) | 1.7mm |
| ISO606 Tensile Strength min | 7900 N |
| Weight | 0.008kg/m |
