SKU: 35-1-NO26-MB

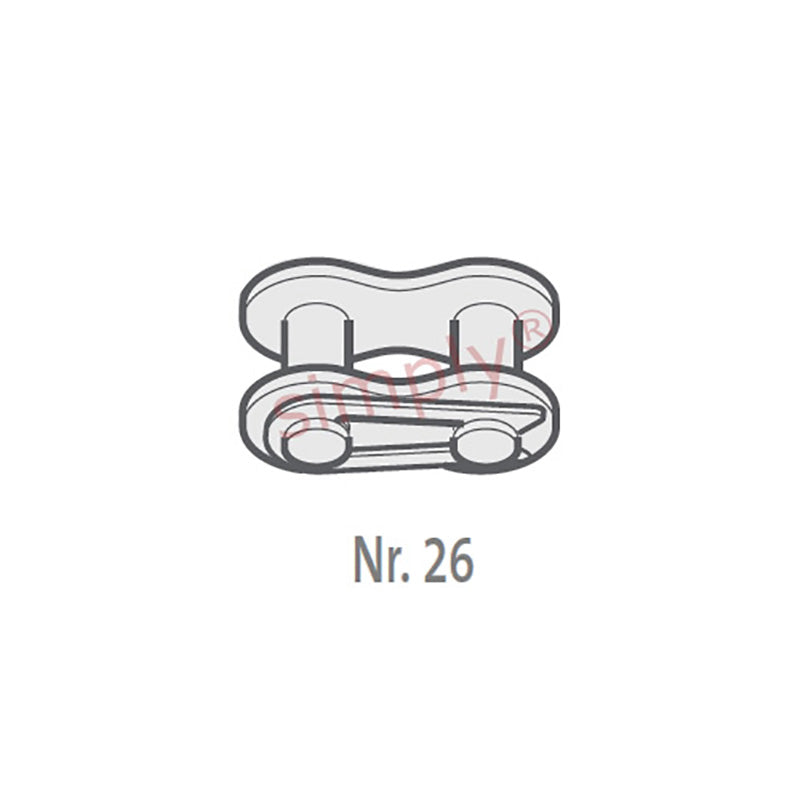

Branded 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Branded 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
€3,99
ex VAT
Regular price
Sale price
€3,99
ex VAT
Equivalent to: 35-1-CL
In stock
Price Break
10+
€3,55
19+
€3,35
29+
€3,31
39+
€3,27
49+
€3,23
74+
€3,19
99+
€2,99
199+
€2,95
249+
€2,91
499+
€2,87
999+
€2,79
Couldn't load pickup availability
Description
Description
Branded CL / No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 35-1-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch

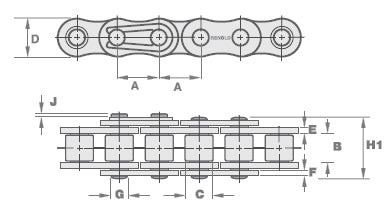

Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 4.77mm |
| Roller Diameter max (C) | 5.08mm |
| Plate Height max (D) | 8.95mm |
| Plate Width Inner max (E) | 1.2mm |
| Plate Width Outer max (F) | 1.2mm |
| Pin Diameter max (G) | 3.58mm |
| Pin Length max (H1) | 12.15mm |
| Connecting Link Extension max (J) | 0.949999999999999mm |
| ISO606 Tensile Strength min | 7900 N |
| Weight | 0.008kg/m |
