SKU: 32980UTG-NTN

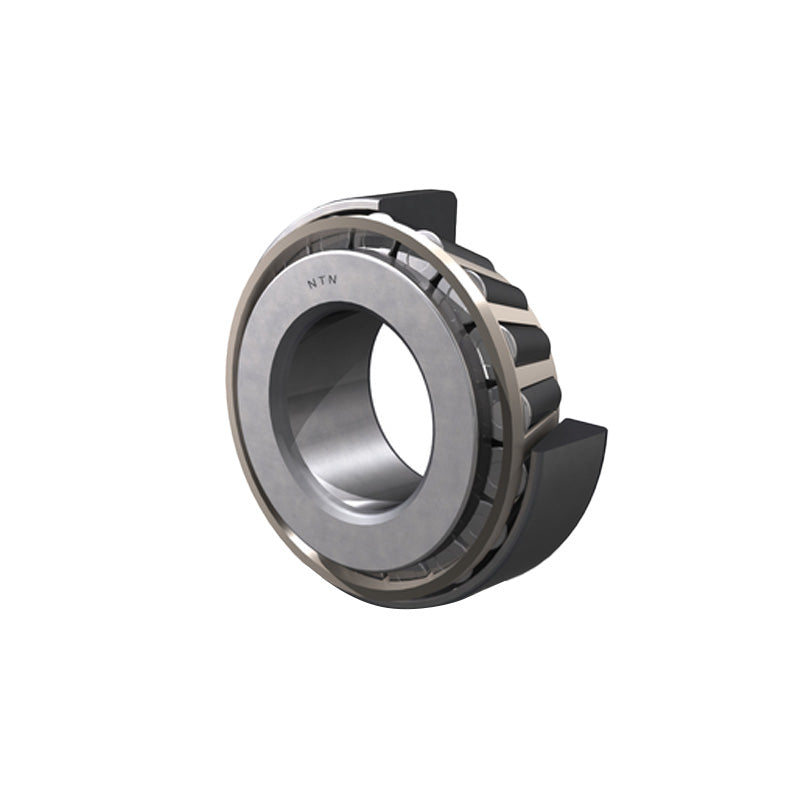

NTN 32980UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 400x540x87mm - Allow 2-3 Days

NTN 32980UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 400x540x87mm - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 400mm
D 540mm
T 87mm
B 82mm
C 71mm
r<sub>s</sub> min 4mm
r<sub>ls</sub> min 4mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1530kN
Static load C<sub>or</sub> 2710kN
Fatigue Load limit C<sub>u</sub> 207kN
Allowable Speed in grease 520rpm
Allowable Speed in oil 740rpm
--- Abutment dimensions
d<sub>a</sub> min 418mm
d<sub>b</sub> max 422.5mm
D<sub>a</sub> max 522mm
D<sub>a</sub> min 482mm
D<sub>b</sub> min 521.5mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 16mm
r<sub>as</sub> max 3mm
r<sub>1as</sub> max 3mm
Load center a 106mm
Constant e 0.42mm
Y<sub>2</sub> 1.43mm
Y<sub>0</sub> 0.79mm
Weight 54kg
