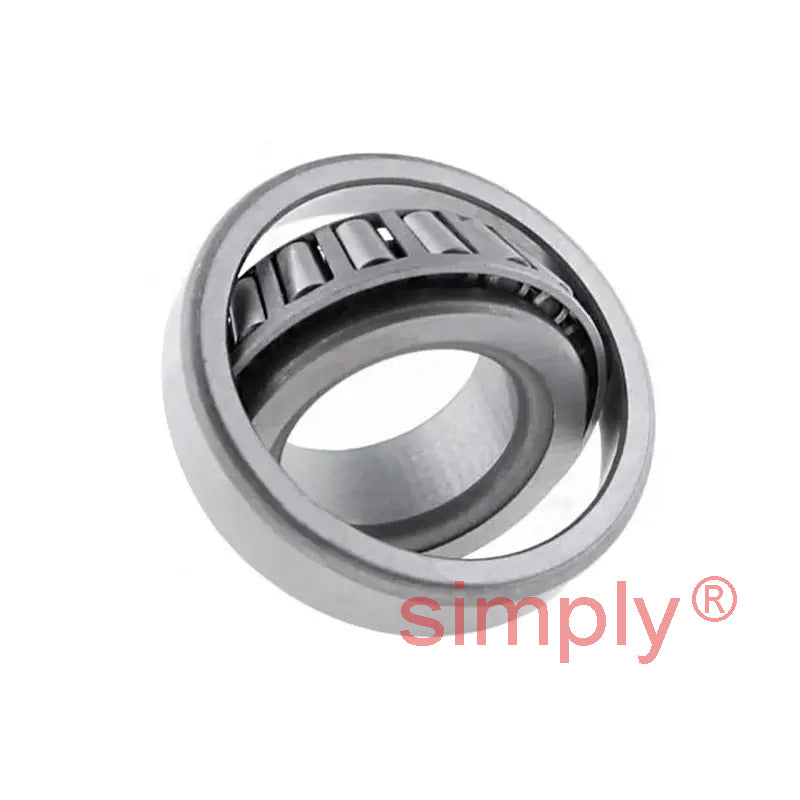

• Timken 32205 Metric Taper Roller Bearing 25x52x19.25mm
1 1

SKU: 32205-TIM

Timken 32205 Metric Taper Roller Bearing 25x52x19.25mm

Timken 32205 Metric Taper Roller Bearing 25x52x19.25mm
€51,66 ex VAT
€51,66 ex VAT
Sale Sold out

In stock

Price Break
10+ €39,35
20+ €37,14
30+ €36,70
40+ €36,26
50+ €35,81
75+ €35,37
100+ €33,16
200+ €32,72
250+ €32,28
500+ €31,83
1000+ €30,95
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
Timken - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
19.25mm
Technical
d 25mm
D 52mm
T 19.25mm
Dynamic load 35.8 kN
Static load 44 kN
Fatigue load limit Pu 4.65 kN
Reference speed 9500 rpm
Limiting speed 13000 rpm
Mass 0.19 kg
d1 40.2mm
B 18mm
C 15mm
r1r2 min 1mm
r3r4 min 1mm
a 16mm
da max 30mm
db min 31mm
Da min 41mm
Da max 46mm
Db min 50mm
Ca min 3mm
Cb min 4mm
ra max 1mm
rb max 1mm
e 0.57
Y 1.05
Y0 0.6
