SKU: 32080UTG-NTN

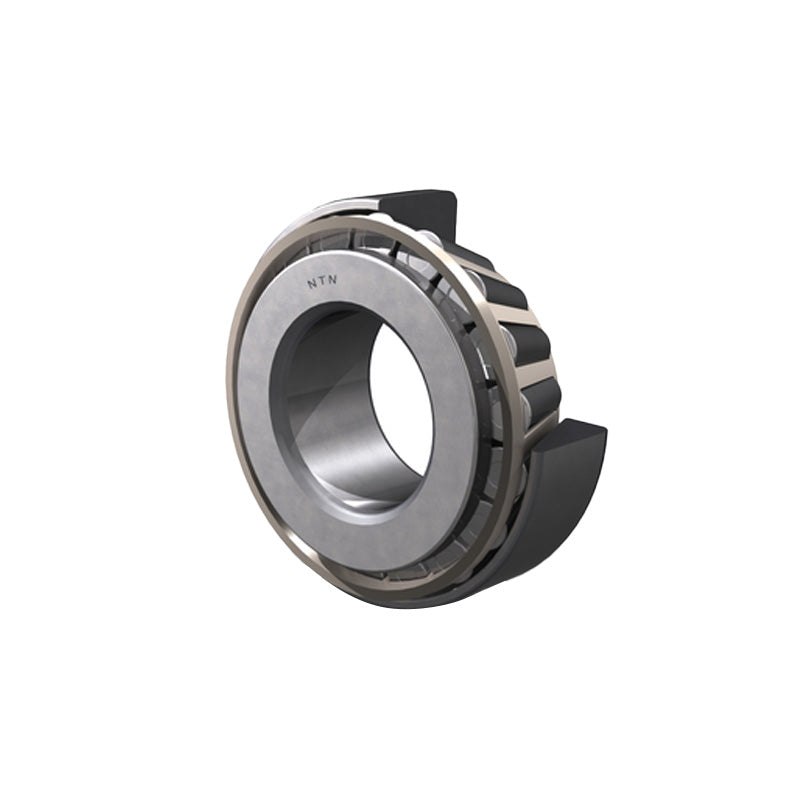

NTN 32080UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 400x600x125mm - Allow 2-3 Days

NTN 32080UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 400x600x125mm - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 400mm
D 600mm
T 125mm
B 118mm
C 100mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 2790kN
Static load C<sub>or</sub> 4250kN
Fatigue Load limit C<sub>u</sub> 320kN
Allowable Speed in grease 490rpm
Allowable Speed in oil 700rpm
--- Abutment dimensions
d<sub>a</sub> min 422mm
d<sub>b</sub> max 428.5mm
D<sub>a</sub> max 578mm
D<sub>a</sub> min 526mm
D<sub>b</sub> min 575mm
S<sub>a</sub> min 5mm
S<sub>b</sub> min 25mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 119mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 110kg
