SKU: 32016XU-NTN

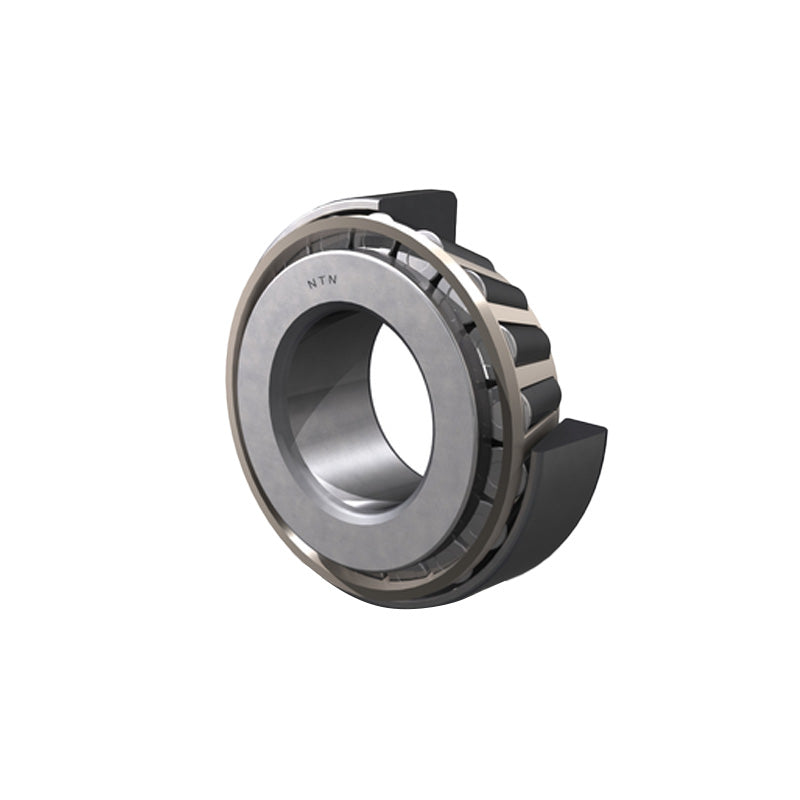

NTN 32016XU Tapered Roller Bearing Cup and Cone Set 80x125x29mm

NTN 32016XU Tapered Roller Bearing Cup and Cone Set 80x125x29mm
Regular price €67,36 ex VAT
Regular price Sale price €67,36 ex VAT
Sale Sold out

In stock

Price Break
3+ €51,30
5+ €48,42
10+ €47,84
25+ €47,26
49+ €46,69
74+ €46,11
99+ €43,23
199+ €42,65
249+ €42,08
499+ €41,50
999+ €40,35
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

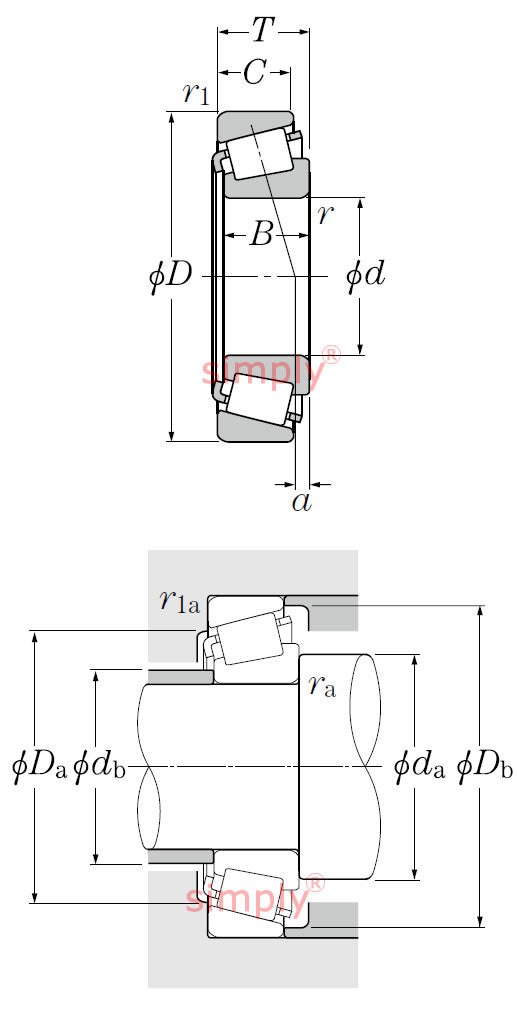

--- Bearing dimensions
d 80mm
D 125mm
T 29mm
B 29mm
C 22mm
r<sub>s</sub> min 1.5mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 154kN
Static load C<sub>or</sub> 216kN
Fatigue Load limit C<sub>u</sub> 26.1kN
Allowable Speed in grease 2800rpm
Allowable Speed in oil 3700rpm
--- Abutment dimensions
ISO Dimension series 3CC
d<sub>a</sub> min 88.5mm
d<sub>b</sub> max 89mm
D<sub>a</sub> max 116.5mm
D<sub>a</sub> min 108.5mm
D<sub>b</sub> min 120.5mm
S<sub>a</sub> min 6mm
S<sub>b</sub> min 7mm
r<sub>as</sub> max 1.5mm
r<sub>1as</sub> max 1.5mm
Load center a 27mm
Constant e 0.42mm
Y<sub>2</sub> 1.42mm
Y<sub>0</sub> 0.78mm
Weight 1.28kg
