SKU: 3095-100G-RHP

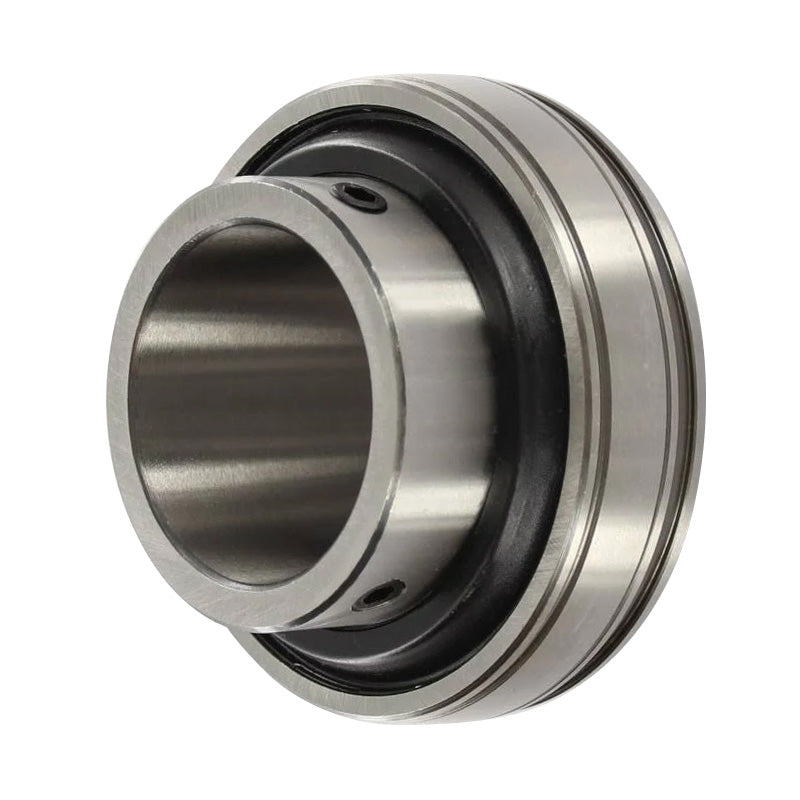

RHP 3095-100G Spherical Outer Full Width Bearing Insert 100mm Bore 200mm Outside Diameter

Name: RHP 3095-100G Spherical Outer Full Width Bearing Insert 100mm Bore 200mm Outside Diameter
Brand: RHP
SKU: 3095-100G-RHP
Price: 590.98 EUR
Availability: InStock

€590,98 ex VAT

Sale Sold out

In stock

Price Break

10+ €450,09

20+ €424,81

30+ €419,75

40+ €414,69

50+ €409,64

75+ €404,58

100+ €379,29

200+ €374,24

250+ €369,18

500+ €364,12

1000+ €354,01

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 200mm
Style:: 3095

Technical

Bore	100mm
D	200mm
C	45mm
B	117.48mm
s	49.27mm
d1	130.43mm
M	19.05mm
r	2.5mm
Dynamic load Cr	157000 N
Static load Cor	122000 N
Rec max speed	1600 rpm
Weight	9.53 kg
