SKU: 24B-3-SYN-NO11-RENOLD
Renold Synergy 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold Synergy 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
€319,15
ex VAT
Regular price
Sale price
€319,15
ex VAT
In stock
Price Break
10+
€284,04
19+
€268,09
29+
€264,89
39+
€261,70
49+
€258,51
74+
€255,32
99+
€239,36
199+
€236,17
249+
€232,98
499+
€229,79
999+
€223,41
Couldn't load pickup availability
Description
Description

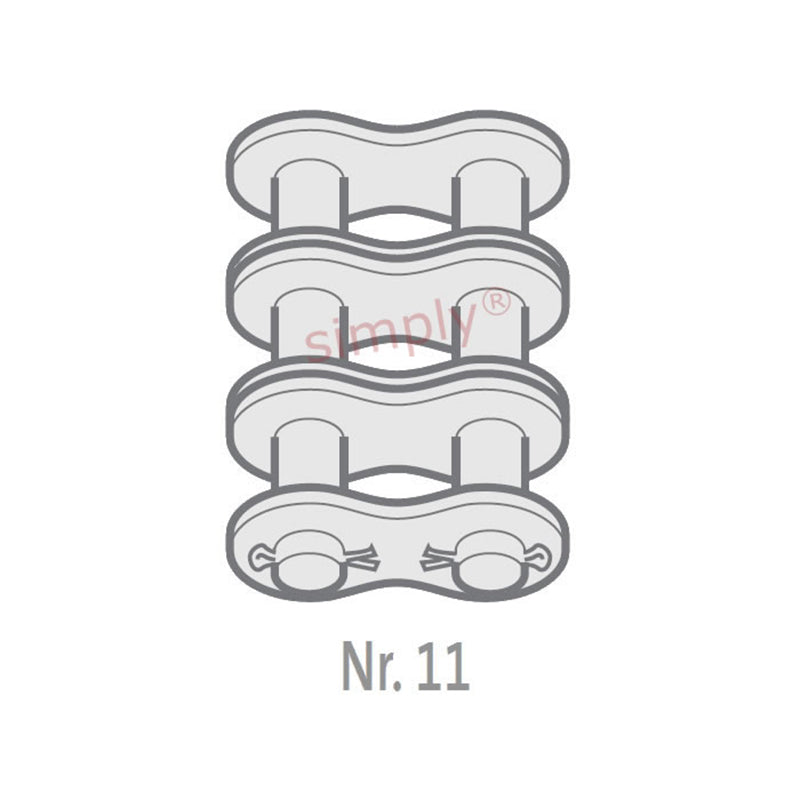

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.4mm |
| Plate Width Inner max (E) | 6.1mm |
| Plate Width Outer max (F) | 5.08mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H2) | 149.7mm |
| Connecting Link Extension max (J) | 6.8mm |
| Transverse Pitch nom (K) | 48.36mm |
| ISO606 Tensile Strength min | 425000 N |
| Weight | 0.19kg/m |
