Branded 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Branded 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
€28,93
ex VAT
Regular price
Sale price
€28,93
ex VAT
Equivalent to: 24B-3-OL
In stock
Price Break
2+
€22,04
5+
€20,80
10+
€20,55
29+
€20,30
49+
€20,06
75+
€19,81
100+
€18,57
200+
€18,32
250+
€18,07
500+
€17,83
1000+
€17,33
Description
Description

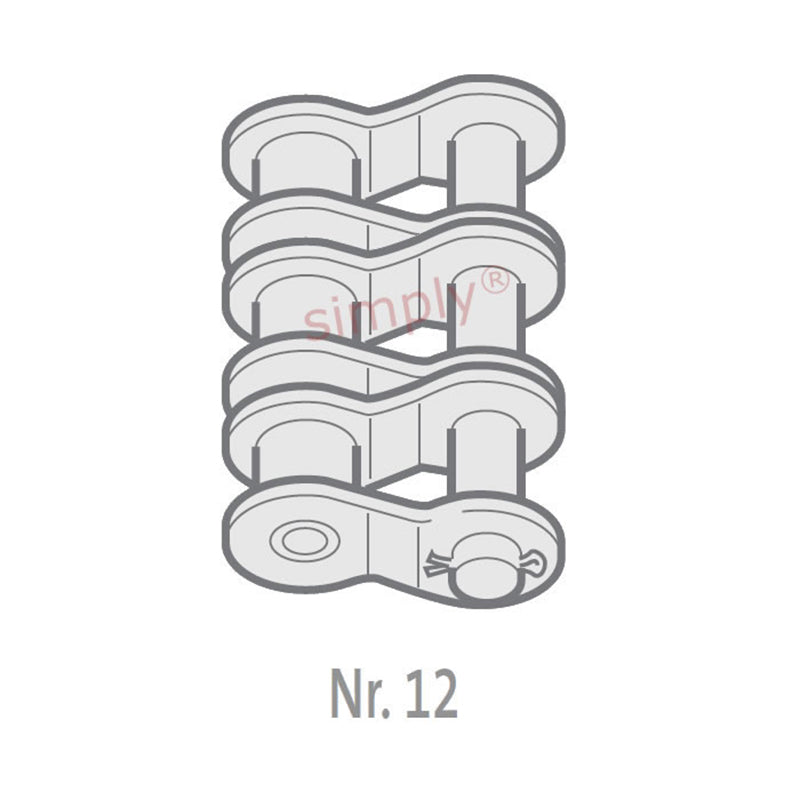

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 24B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H3) | 143.1mm |
| Connecting Link Extension max (J) | 12.6mm |
| ISO606 Tensile Strength min | 460000 N |
| Weight | 0.28kg/m |
