SKU: 24.DLX.32

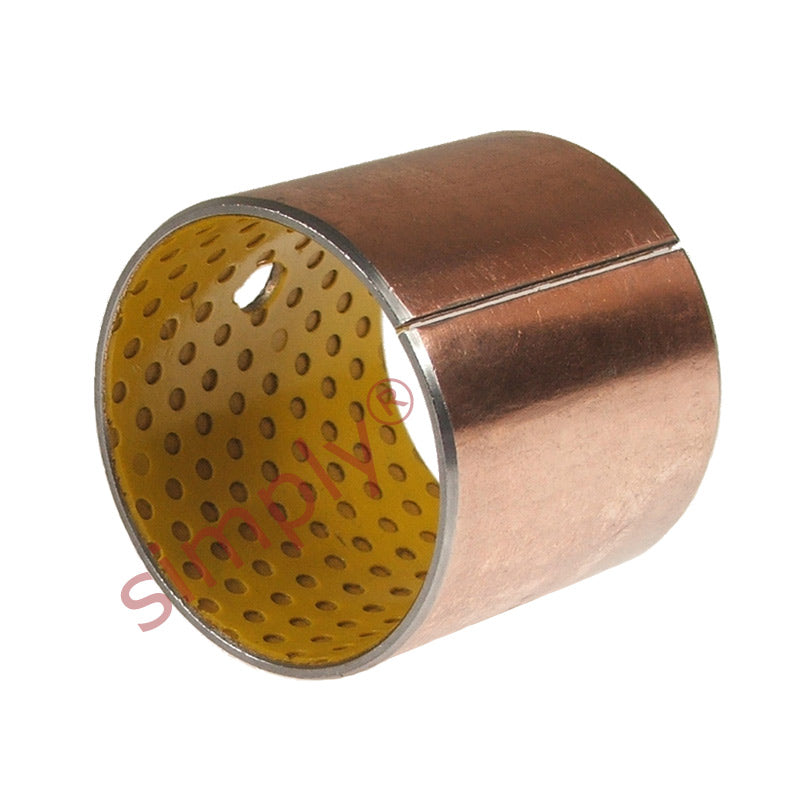

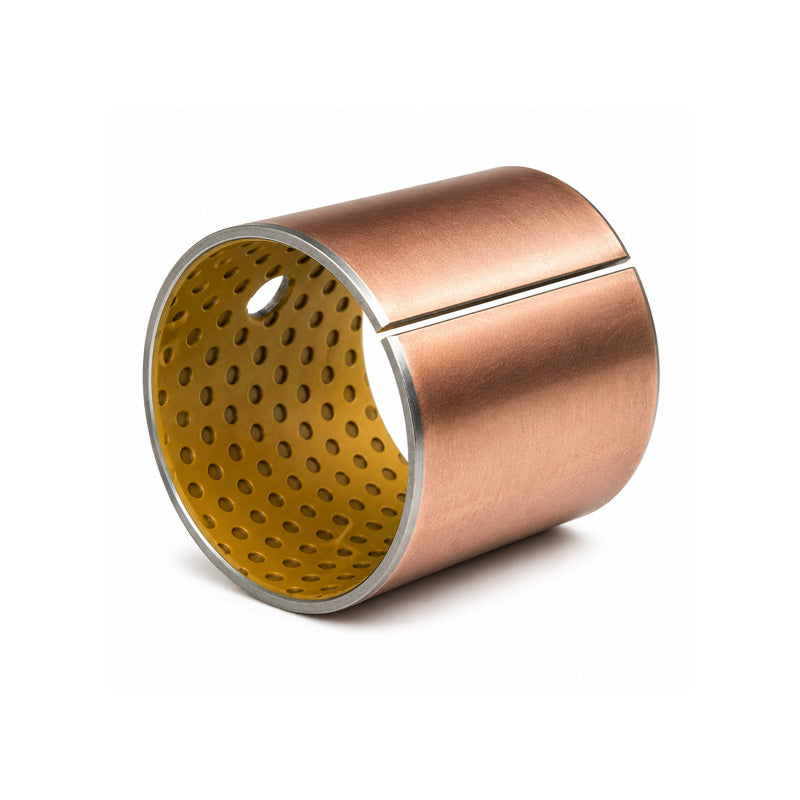

24DLX32 Bronze Backed Steel Bush 1-1/2x1-21/32x2 inch
24DLX32 Bronze Backed Steel Bush 1-1/2x1-21/32x2 inch
Regular price
€5,63
ex VAT
Regular price
Sale price
€5,63
ex VAT
In stock
Price Break
10+
€5,01
19+
€4,73
29+
€4,67
39+
€4,62
49+
€4,56
74+
€4,50
99+
€4,22
199+
€4,17
249+
€4,11
499+
€4,05
999+
€3,94
Couldn't load pickup availability
Description
Description
|
Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 42.07mm = 1.656 (1-21/32) inch
- Length:
- 50.8mm = 2 inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 1-21/32 inch |
| b | 2 inch |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40?C to +110? C |
| Intermittent maximum temperature | 130? C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
