SKU: 23944CC/C3W33-SKF

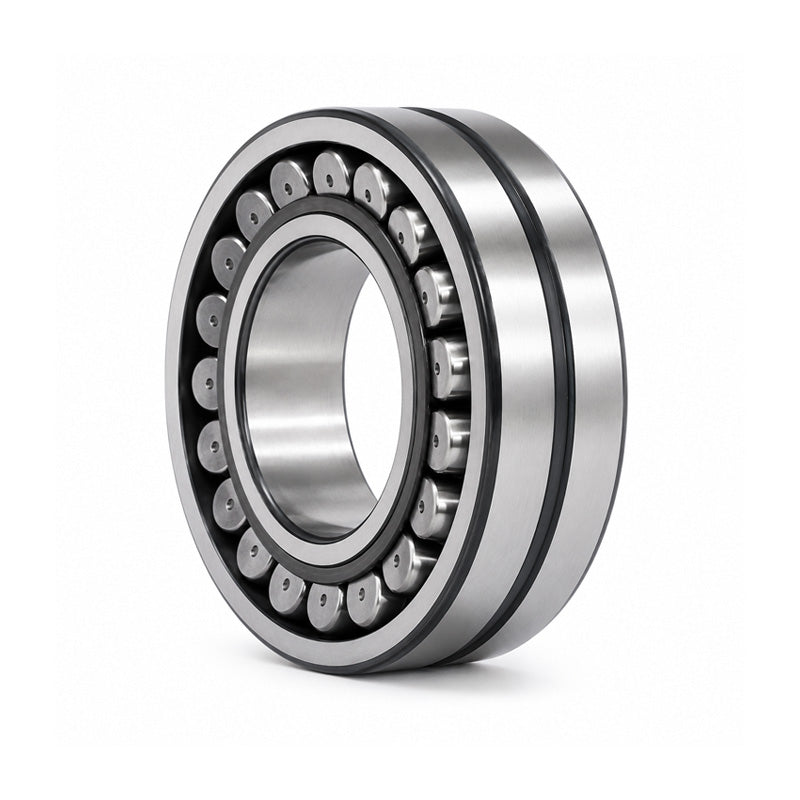

SKF 23944CCC3W33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 220x300x60mm
SKF 23944CCC3W33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 220x300x60mm
Regular price
€1.670,30
ex VAT
Regular price
Sale price
€1.670,30
ex VAT
In stock
Price Break
3+
€1.272,10
4+
€1.200,63
9+
€1.186,34
19+
€1.172,05
29+
€1.157,75
39+
€1.143,46
49+
€1.071,99
59+
€1.057,70
249+
€1.043,41
499+
€1.029,11
999+
€1.000,53
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 300mm
- Width:
- 60mm
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 220mm |
| D | 300mm |
| B | 60mm |
| D1 | 278mm |
| d2 | 241mm |
| r1r2 min | 2.1mm |
| b | 8.3mm |
| K | 4.5mm |
| da min | 231mm |
| Da max | 289mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 546 kN |
| Static load Co | 1080 kN |
| Fatigue load limit Pu | 93 kN |
| Reference speed | 1900 rpm |
| Limiting speed | 2200 rpm |
| Weight | 12.5 kg |
| --- | Factors |
| Calculation factor e | 0.16 |
| Calculation factor Y1 | 4.2 |
| Calculation factor Y2 | 6.3 |
| Calculation factor Y0 | 4 |
