SKU: 2210K-EU

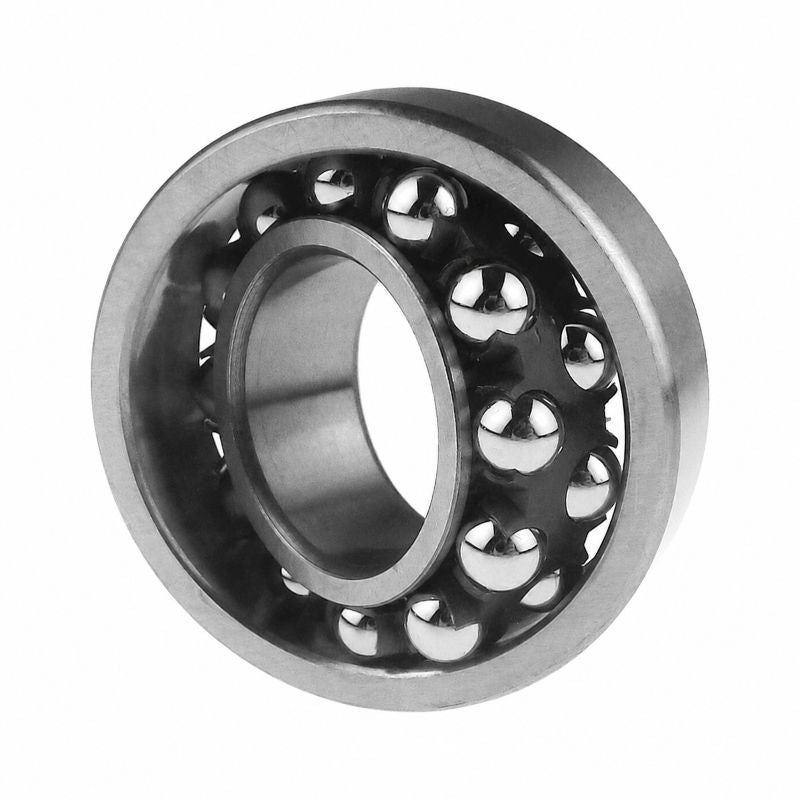

2210K Budget Open Self Aligning Ball Bearing with Taper Bore 50x90x23mm

2210K Budget Open Self Aligning Ball Bearing with Taper Bore 50x90x23mm
Regular price €31,27 ex VAT
Regular price Sale price €31,27 ex VAT
Sale Sold out

Equivalent to: 2210EK

In stock

Price Break
10+ €23,82
19+ €22,48
29+ €22,21
39+ €21,95
49+ €21,68
74+ €21,41
99+ €20,07
199+ €19,81
249+ €19,54
499+ €19,27
999+ €18,74
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 50mm
D 90mm
B 23mm
D1 81.5mm
d1d2 61.5mm
r1r2 1.1mm
da min 57mm
Da max 83mm
ra max 1mm
--- Calculation Data
C 33.8kN
Co 11.29.15
Pu 0.57kN
ref 14000rpm
limit 9500rpm
e 0.23
Y1 2.7
Y2 4.2
Y0 2.8
--- Weights
kg 0.6
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310+sleeve>H310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS310+sleeve>HS310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA310+sleeve>HA310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE310+sleeve>HE310</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX310+sleeve>AHX310</a>
