SKU: 20B-2-SYN-NO11-RENOLD
Renold Synergy 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold Synergy 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
€93,05
ex VAT
Regular price
Sale price
€93,05
ex VAT
In stock
Price Break
10+
€82,81
19+
€78,16
29+
€77,23
39+
€76,30
49+
€75,37
74+
€74,44
99+
€69,79
199+
€68,86
249+
€67,93
499+
€67,00
999+
€65,14
Couldn't load pickup availability
Description
Description

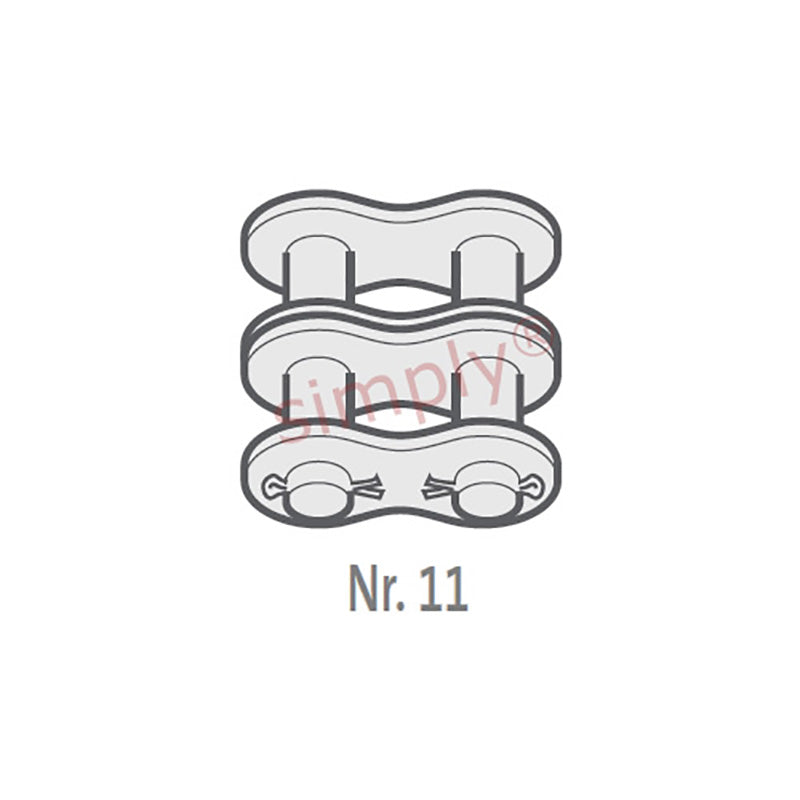

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 76.7mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 36.45mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.22kg/m |
