SKU: 20B-2-SNX-NO26-RENOLD
Renold SYNO 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Renold SYNO 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Regular price
€119,76
ex VAT
Regular price
Sale price
€119,76
ex VAT
In stock
Price Break
2+
€91,21
5+
€86,08
10+
€85,06
29+
€84,03
49+
€83,01
75+
€81,98
100+
€76,86
200+
€75,84
250+
€74,81
500+
€73,79
1000+
€71,74
Description
Description

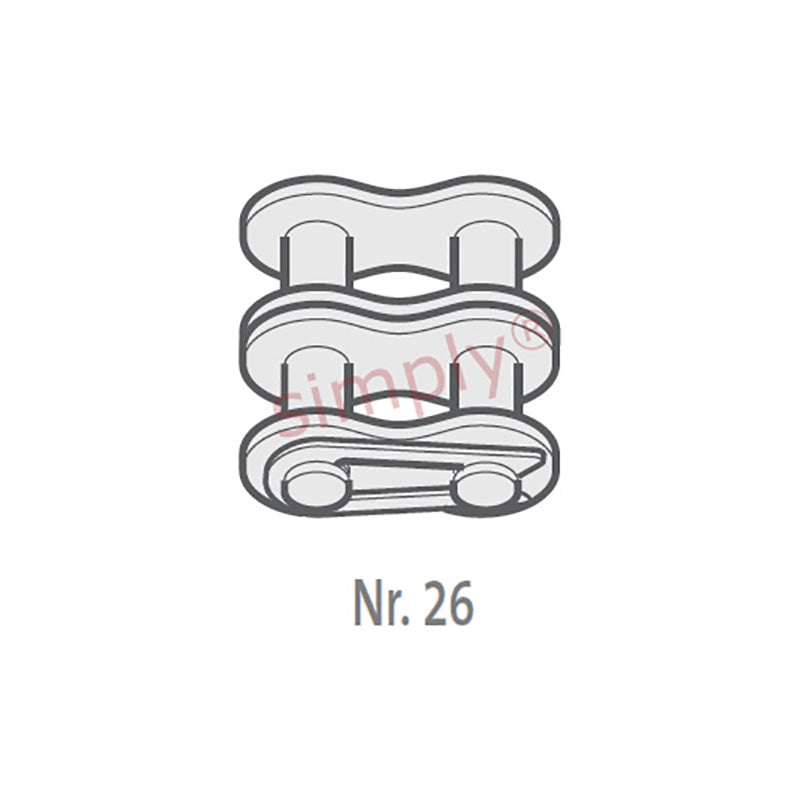

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 76.7mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.08kg/m |
