SKU: 1750XH-200-200-TRANSFLEX

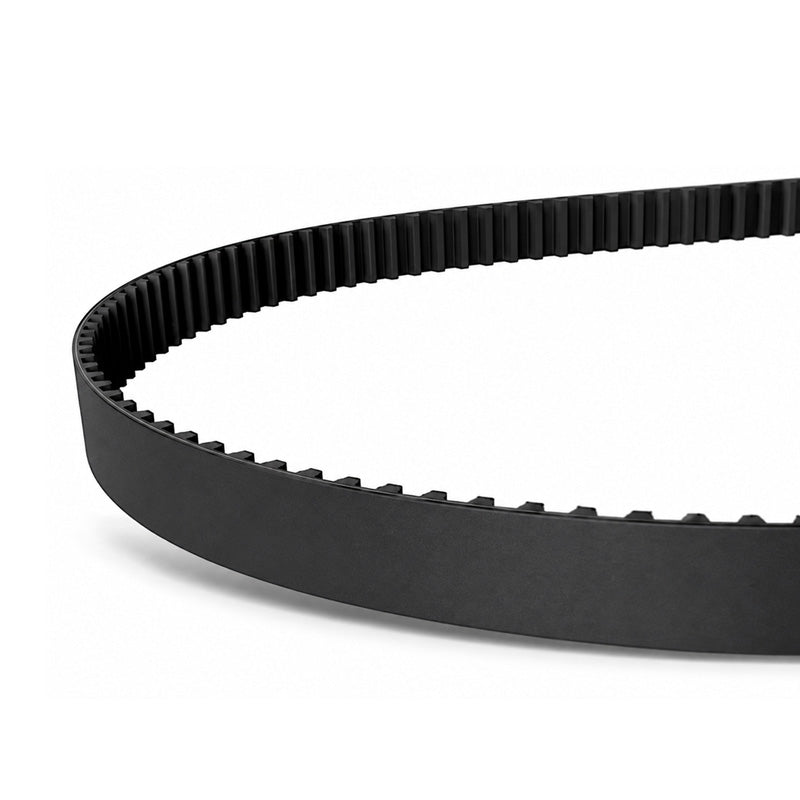

1750XH200 Transflex Synchronous Toothed Belt 2.00 inch Wide 175 inch Length 200 Teeth Allow 2-3 Days
1750XH200 Transflex Synchronous Toothed Belt 2.00 inch Wide 175 inch Length 200 Teeth Allow 2-3 Days
Regular price
€207,13
ex VAT
Regular price
Sale price
€207,13
ex VAT
In stock
Price Break
3+
€175,48
5+
€168,39
10+
€164,84
15+
€159,53
20+
€155,98
30+
€147,12
40+
€124,08
50+
€0,00
60+
€0,00
75+
€0,00
100+
€0,00
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 50.8mm = 2 inch
- Belt Depth Approx:
- 11.2mm
- Belt Length Approx:
- 4445mm = 175 inch
- Number of Teeth:
- 200
Technical
Technical
| Belt width | 2.00 inch = 50.80mm |
|---|---|
| Pitch length | 175 inch = 4445mm |
| Number of teeth | 200 |
| Tooth pitch t | 0.875 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.25 inch |
| Pitch zone u | 0.055 inch |
