SKU: 16B-3-SYN-NO11-RENOLD
Renold Synergy 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
Renold Synergy 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
€404,25
ex VAT
Regular price
Sale price
€404,25
ex VAT
In stock
Price Break
10+
€359,78
19+
€339,57
29+
€335,53
39+
€331,49
49+
€327,44
74+
€323,40
99+
€303,19
199+
€299,15
249+
€295,10
499+
€291,06
999+
€282,98
Couldn't load pickup availability
Description
Description

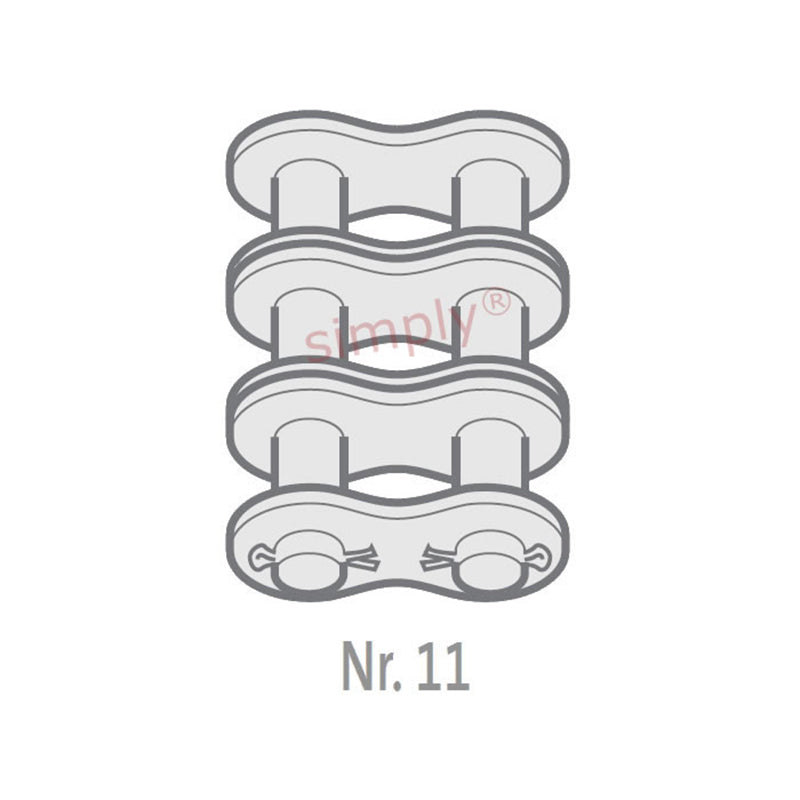

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 98.6mm |
| Connecting Link Extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 160000 N |
| Weight | 0.046kg/m |
