SKU: 16B-3-NO26-MB

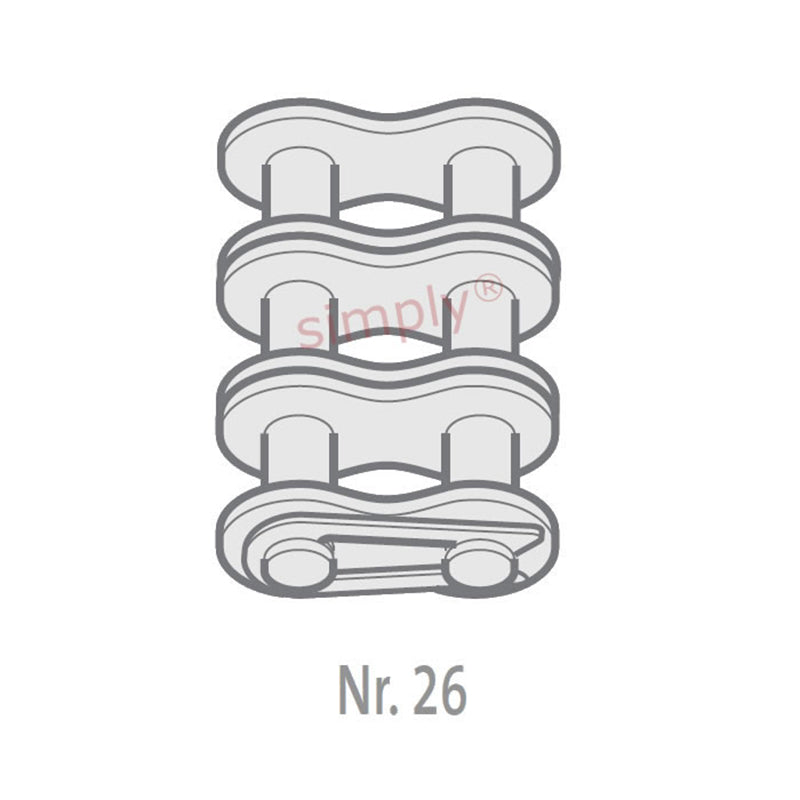

Branded 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Branded 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
€11,03
ex VAT
Regular price
Sale price
€11,03
ex VAT
Equivalent to: 16B-3-CL
In stock
Price Break
2+
€8,40
5+
€7,93
10+
€7,83
29+
€7,74
49+
€7,65
75+
€7,55
100+
€7,08
200+
€6,98
250+
€6,89
500+
€6,80
1000+
€6,61
Description
Description
Branded CL / No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 16B-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H3) | 103.2mm |
| Connecting Link Extension max (J) | 3.60000000000001mm |
| ISO606 Tensile Strength min | 173000 N |
| Weight | 0.113kg/m |
