SKU: 16B-2-BB-NO26-RENOLD

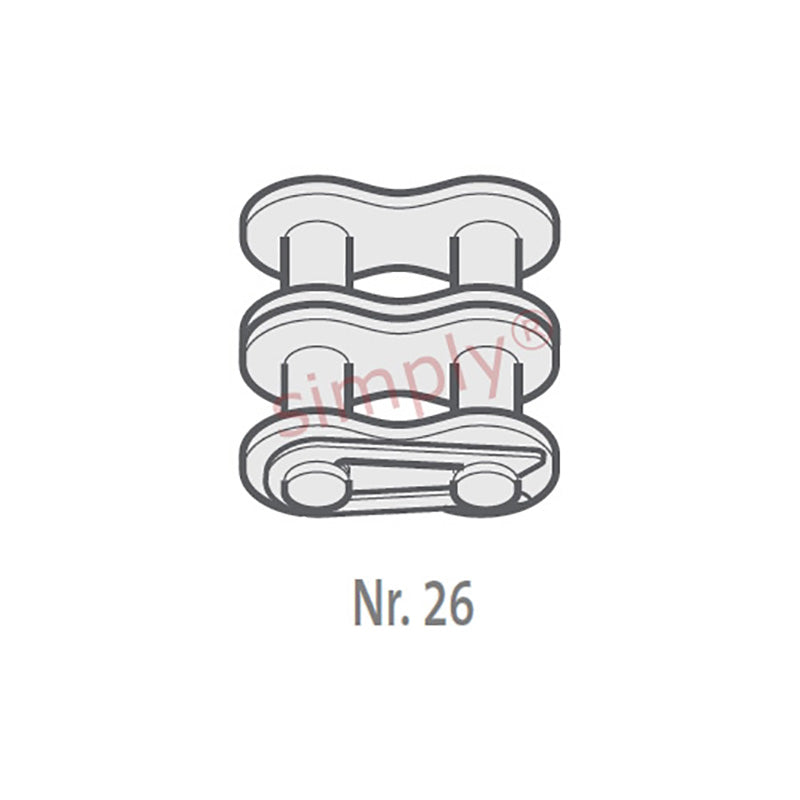

Renold Blue Box 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Blue Box 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
€15,93
ex VAT
Regular price
Sale price
€15,93
ex VAT
In stock
Price Break
2+
€12,13
5+
€11,45
10+
€11,31
29+
€11,18
49+
€11,04
75+
€10,90
100+
€10,22
200+
€10,09
250+
€9,95
500+
€9,81
1000+
€9,54
Description
Description
| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 3.76mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 66.8mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
