SKU: 16B-1-NO26-MB
Branded 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Branded 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
€6,03
ex VAT
Regular price
Sale price
€6,03
ex VAT
Equivalent to: 16B-1-CL
In stock
Price Break
2+
€4,59
5+
€4,33
10+
€4,28
29+
€4,23
49+
€4,18
75+
€4,13
100+
€3,87
200+
€3,82
250+
€3,77
500+
€3,71
1000+
€3,61
Description
Description

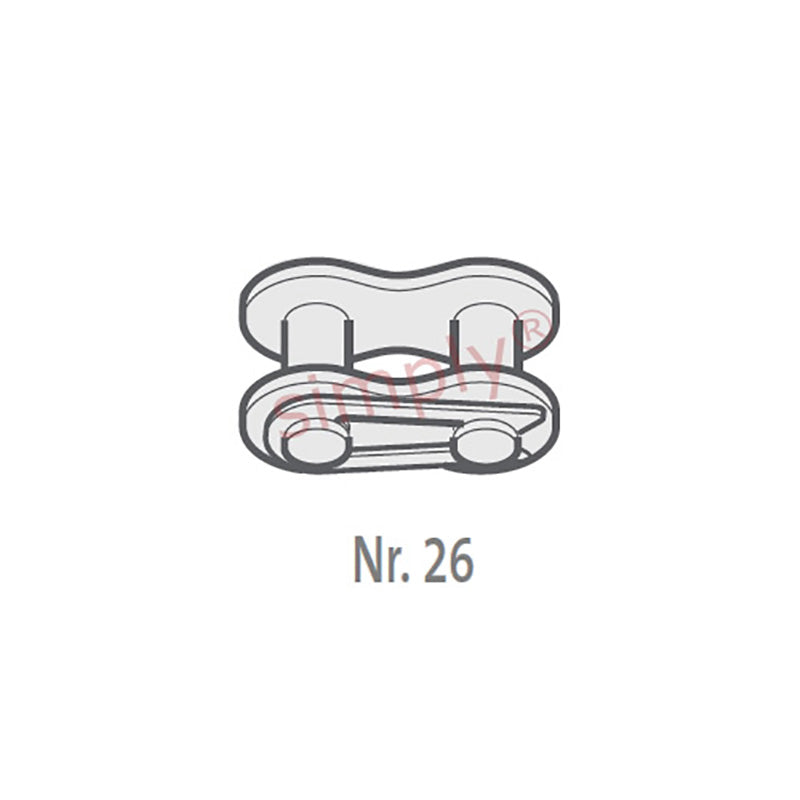

Branded CL / No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 16B-1-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 36mm |
| Connecting Link Extension max (J) | 1.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.067kg/m |
