SKU: 160-3-NO11-DUN
Branded 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Branded 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
€49,28
ex VAT
Regular price
Sale price
€49,28
ex VAT
Equivalent to: 160-3-CL-COT 160-3-CL
In stock
Price Break
10+
€43,86
19+
€41,40
29+
€40,90
39+
€40,41
49+
€39,92
74+
€39,42
99+
€36,96
199+
€36,47
249+
€35,97
499+
€35,48
999+
€34,50
Couldn't load pickup availability
Description
Description

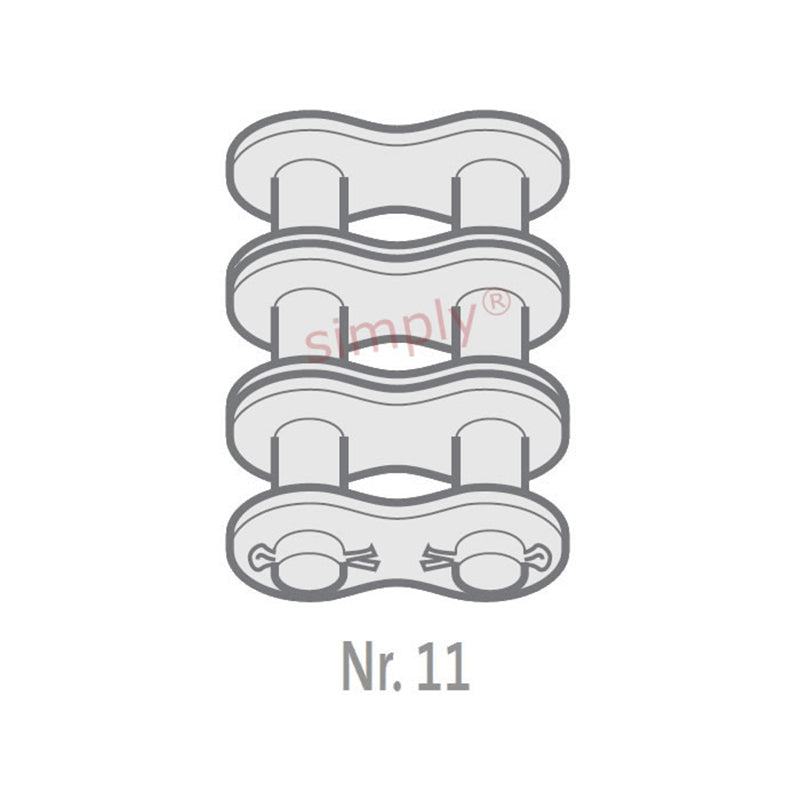

Branded COT / No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 160-3-CL-COT 160-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.2mm |
| Pin Length max (H1) | 170.5mm |
| Connecting Link Extension max (J) | 16.8mm |
| ISO606 Tensile Strength min | 669000 N |
| Weight | 58.55kg/m |
