SKU: 1312K-EU

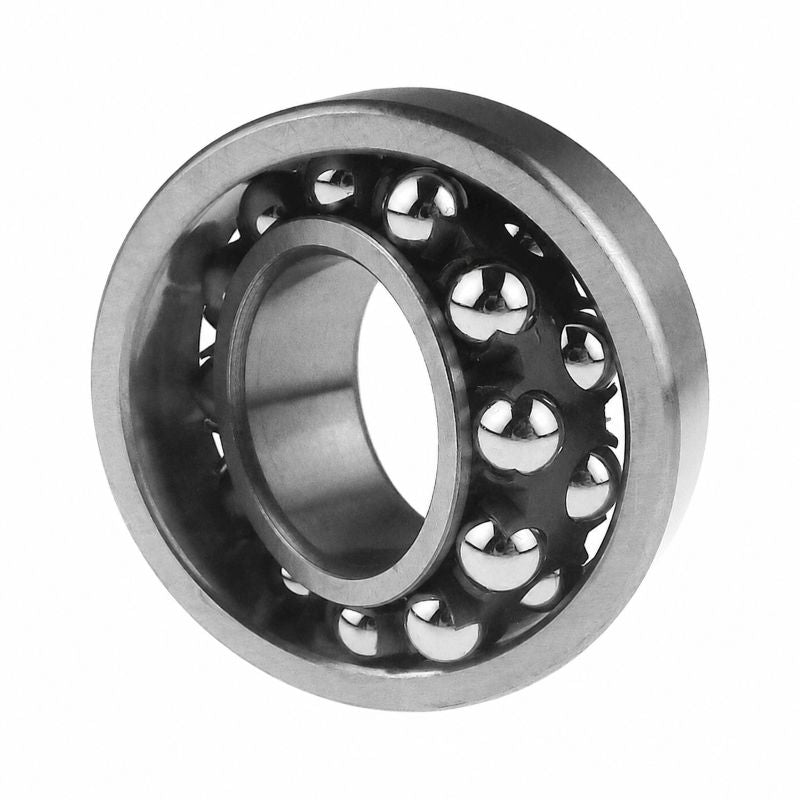

1312K Budget Open Self Aligning Ball Bearing with Taper Bore 60x130x31mm

1312K Budget Open Self Aligning Ball Bearing with Taper Bore 60x130x31mm
Regular price €69,65 ex VAT
Regular price Sale price €69,65 ex VAT
Sale Sold out

Equivalent to: 1312EK

In stock

Price Break
10+ €53,05
19+ €50,07
29+ €49,47
39+ €48,87
49+ €48,28
74+ €47,68
99+ €44,70
199+ €44,10
249+ €43,51
499+ €42,91
999+ €41,72
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 60mm
D 130mm
B 31mm
D1 118mm
d1d2 91.6mm
r1r2 2.1mm
da min 72mm
Da max 118mm
ra max 2mm
--- Calculation Data
C 58.5kN
Co 2217
Pu 1.12kN
ref 9000rpm
limit 6300rpm
e 0.22
Y1 2.9
Y2 4.5
Y0 2.8
--- Weights
kg 1.95
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H312+sleeve>H312</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS312+sleeve>HS312</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX312+sleeve>AHX312</a>
