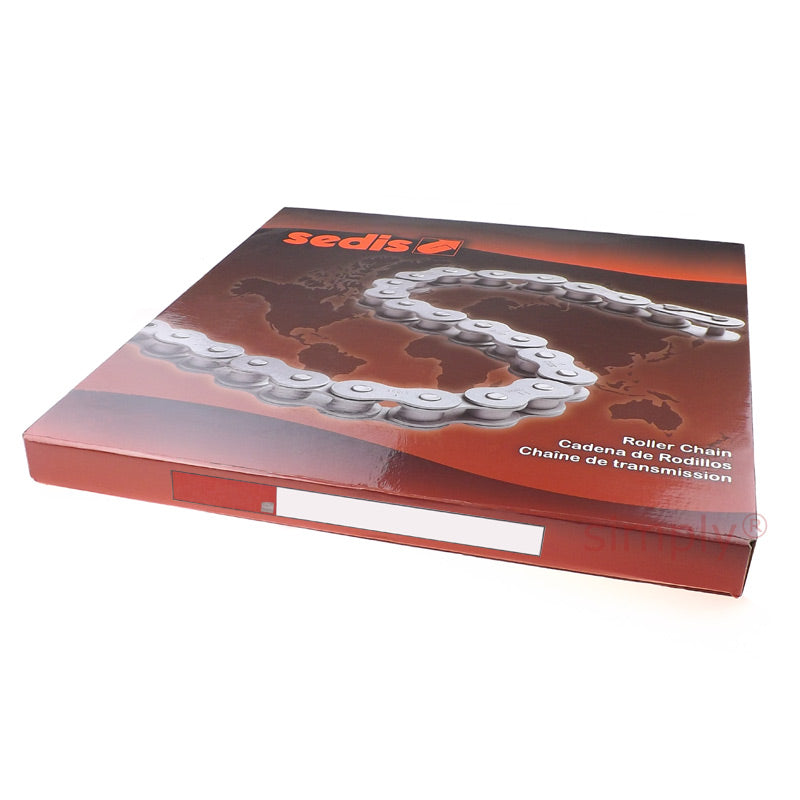

Sedis Delta 12B-2 BS Duplex Roller Chain 15FT Length 3/4 inch Pitch - Allow 2-3 Days
Sedis Delta 12B-2 BS Duplex Roller Chain 15FT Length 3/4 inch Pitch - Allow 2-3 Days
Regular price
€335,91
ex VAT
Regular price
Sale price
€335,91
ex VAT
In stock
Price Break
5+
€332,55
10+
€319,11
20+
€312,40
50+
€302,32
100+
€295,60
500+
€278,81
1000+
€235,14
Couldn't load pickup availability
Description
Description
|
Sedis Delta® HR Chains for Severe Working Conditions (Abrasion, Shocks, Jerks): British standard chain with high resistance to abrasion and wear. The chain links have a steel hardened pin for ultra-high performance. Chains are pre-tensioned at 30-45% of the breaking load. Chains 08B-16B are lubricated with a new high performance wax offering an enhanced anti-wear protection which can work at temperatures from -30 Degrees Celsius to 130 Degrees Celsius. Other chains are pre-lubricated with initial plant lubrication. |
- Brand / Quality:
- Sedis - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical

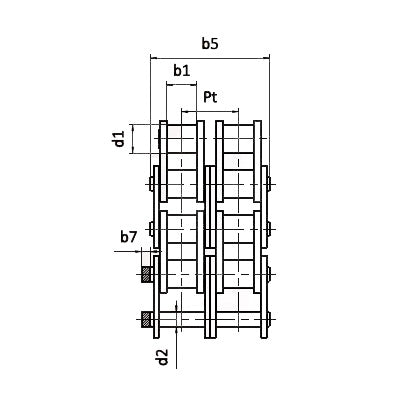

| Pitch P | 19.05mm |
|---|---|
| d1 max | 12.07mm |
| b1 min | 11.68mm |
| b5 max | 41.8mm |
| d2 max | 5.72mm |
| h2 max | 16.2mm |
| Pt | 19.46mm |
| b7 min | 1.5mm |
| Ultimate Tensile Strength OSI 606 min | 57.8 kN |
| Ultimate Tensile Strength DELTA® HR min | 61 kN |
| Ultimate Tensile Strength DELTA® HR nom | 69.5 kN |
| Mass per meter | 2.35 kg |
