SKU: 12B-1-SYN-NO26-RENOLD
Renold Synergy 12B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold Synergy 12B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
€14,06
ex VAT
Regular price
Sale price
€14,06
ex VAT
In stock
Price Break
2+
€10,70
5+
€10,10
10+
€9,98
29+
€9,86
49+
€9,74
75+
€9,62
100+
€9,02
200+
€8,90
250+
€8,78
500+
€8,66
1000+
€8,42
Description
Description

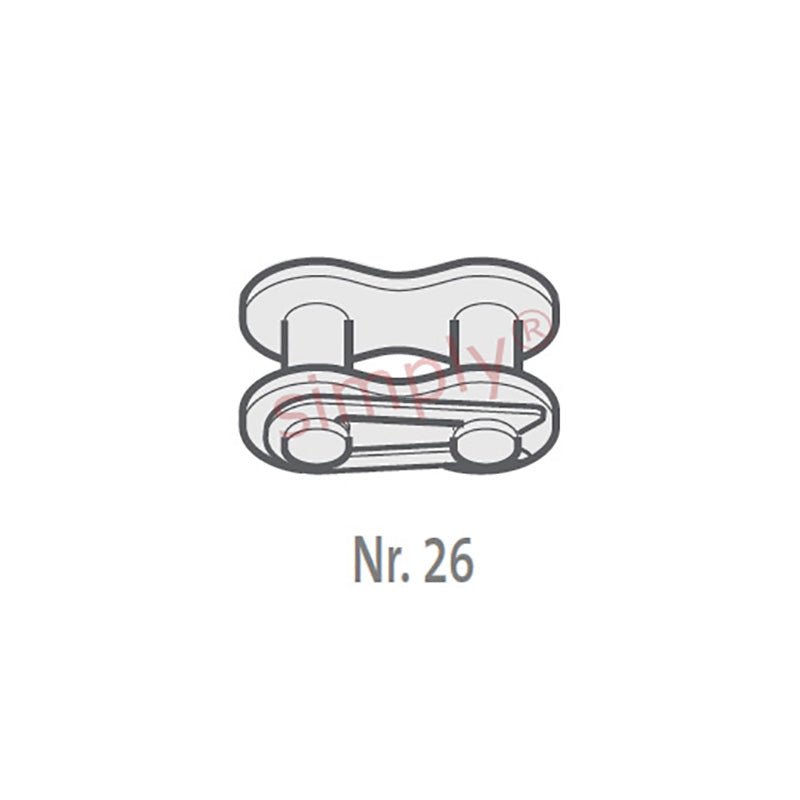

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 21.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| ISO606 Tensile Strength min | 28900 N |
| Weight | 0.008kg/m |
