SKU: 1240-1.1/2EC-RHP

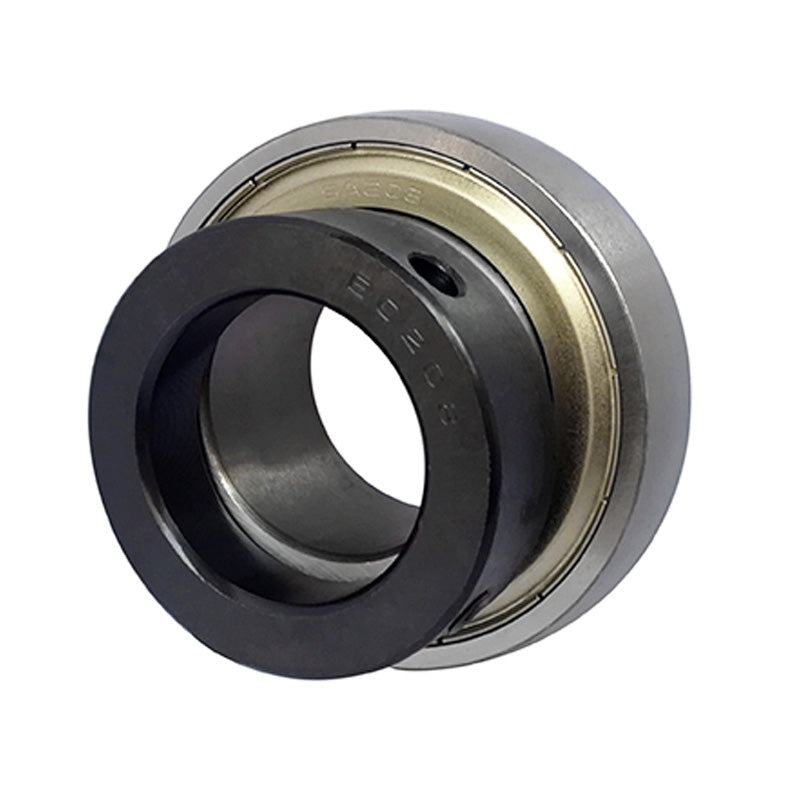

RHP 1240-1-1/2EC Spherical Outer Flat Back Collar Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
RHP 1240-1-1/2EC Spherical Outer Flat Back Collar Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
Regular price
€51,34
ex VAT
Regular price
Sale price
€51,34
ex VAT
In stock
Price Break
10+
€39,09
20+
€36,90
30+
€36,46
40+
€36,02
50+
€35,58
75+
€35,14
100+
€32,94
200+
€32,50
250+
€32,07
500+
€31,63
1000+
€30,75
Description
Description
|
RHP 1200 EC Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- 1240
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| D | 3.1496 inch |
| C | 0.709 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.374 inch |
| r | 0.039 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 0.73 kg |
