Renold SD 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Renold SD 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
€141,89
ex VAT
Regular price
Sale price
€141,89
ex VAT
In stock
Price Break
10+
€126,28
19+
€119,19
29+
€117,77
39+
€116,35
49+
€114,93
74+
€113,51
99+
€106,42
199+
€105,00
249+
€103,58
499+
€102,16
999+
€99,32
Couldn't load pickup availability
Description
Description

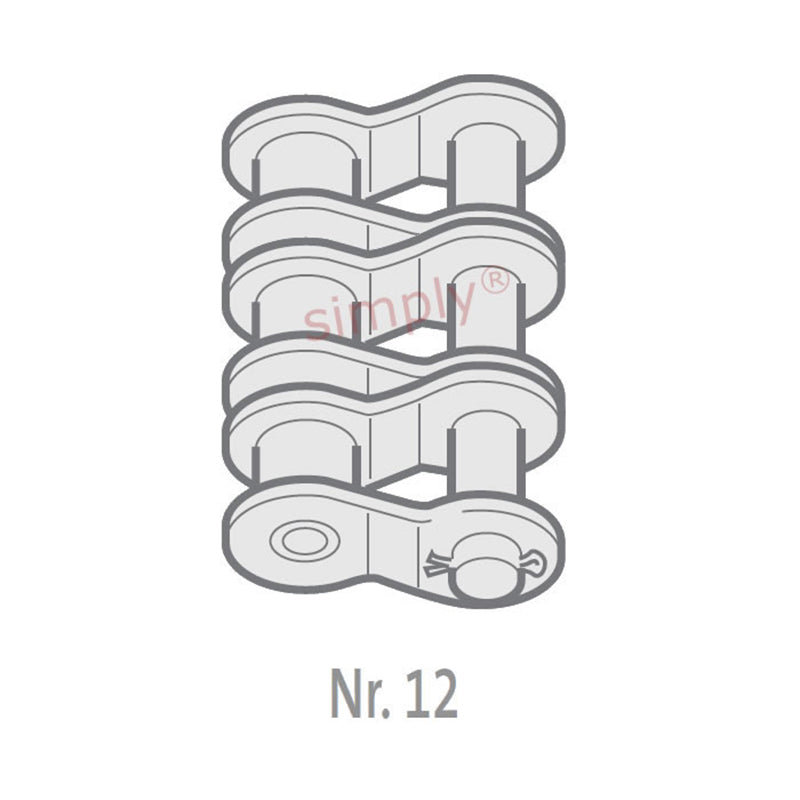

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H1) | 139.55mm |
| Connecting Link Extension max (J) | 8.84999999999999mm |
| ISO606 Tensile Strength min | 375000 N |
| Weight | 45.44kg/m |
