SKU: 10B-2-BB-NO26-RENOLD
Renold Blue Box 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold Blue Box 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
€10,47
ex VAT
Regular price
Sale price
€10,47
ex VAT
In stock
Price Break
2+
€7,97
5+
€7,52
10+
€7,43
29+
€7,34
49+
€7,26
75+
€7,17
100+
€6,72
200+
€6,63
250+
€6,54
500+
€6,45
1000+
€6,27
Description
Description

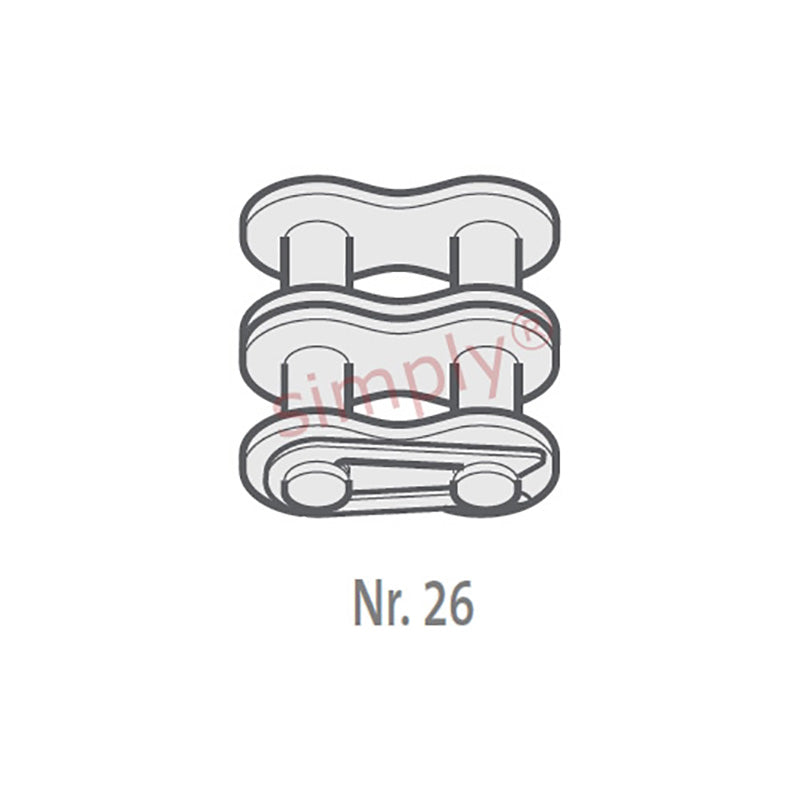

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 35.4mm |
| Connecting Link Extension max (J) | 2.5mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
