SKU: 10B-1-SYN-NO26-RENOLD
Renold Synergy 10B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold Synergy 10B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
€12,60
ex VAT
Regular price
Sale price
€12,60
ex VAT
In stock
Price Break
10+
€11,21
19+
€10,58
29+
€10,46
39+
€10,33
49+
€10,21
74+
€10,08
99+
€9,45
199+
€9,32
249+
€9,20
499+
€9,07
999+
€8,82
Couldn't load pickup availability
Description
Description

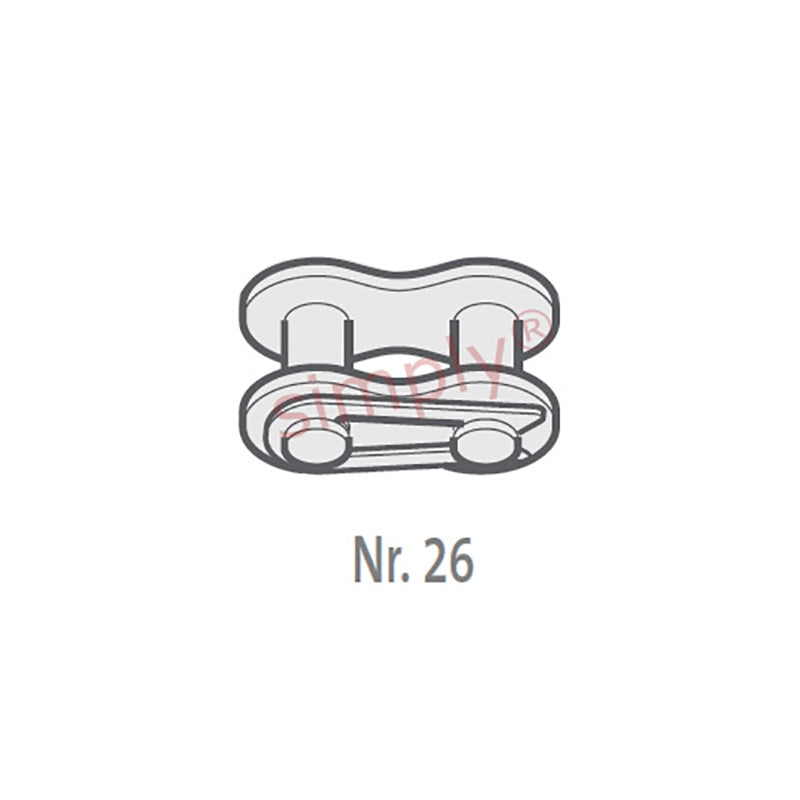

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 18.8mm |
| Connecting Link Extension max (J) | 2.5mm |
| ISO606 Tensile Strength min | 22200 N |
| Weight | 0.005kg/m |
