SKU: 100-3-SD-NO11-RENOLD
Renold SD 100-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold SD 100-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
€38,48
ex VAT
Regular price
Sale price
€38,48
ex VAT
In stock
Price Break
10+
€34,25
19+
€32,32
29+
€31,94
39+
€31,55
49+
€31,17
74+
€30,78
99+
€28,86
199+
€28,48
249+
€28,09
499+
€27,71
999+
€26,94
Couldn't load pickup availability
Description
Description

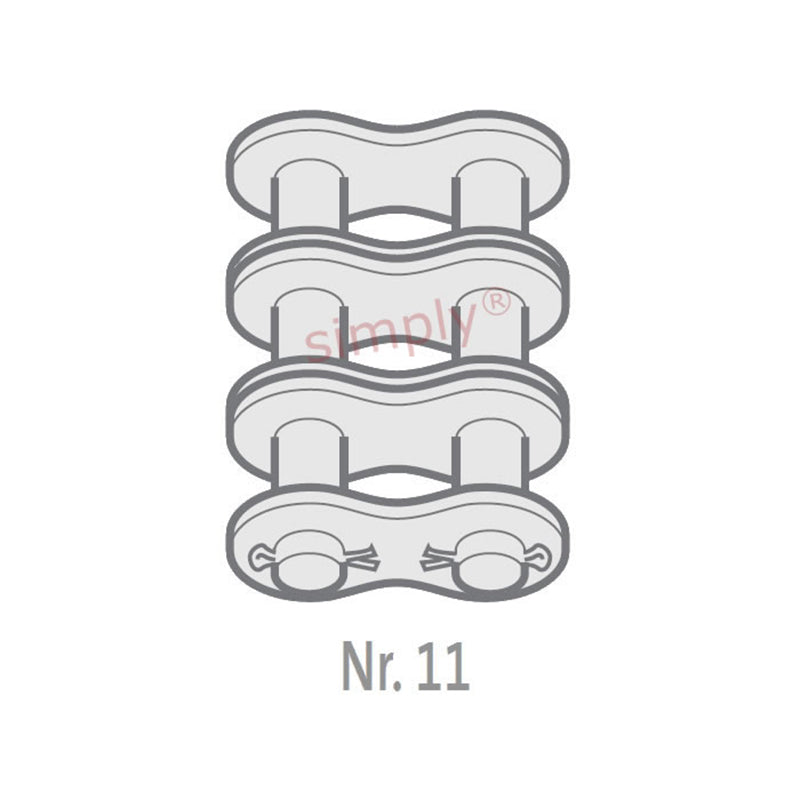

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H1) | 107.2mm |
| Connecting Link Extension max (J) | 9.60000000000001mm |
| ISO606 Tensile Strength min | 261000 N |
| Weight | 35.76kg/m |
