SKU: 083-1-5MTR-MB

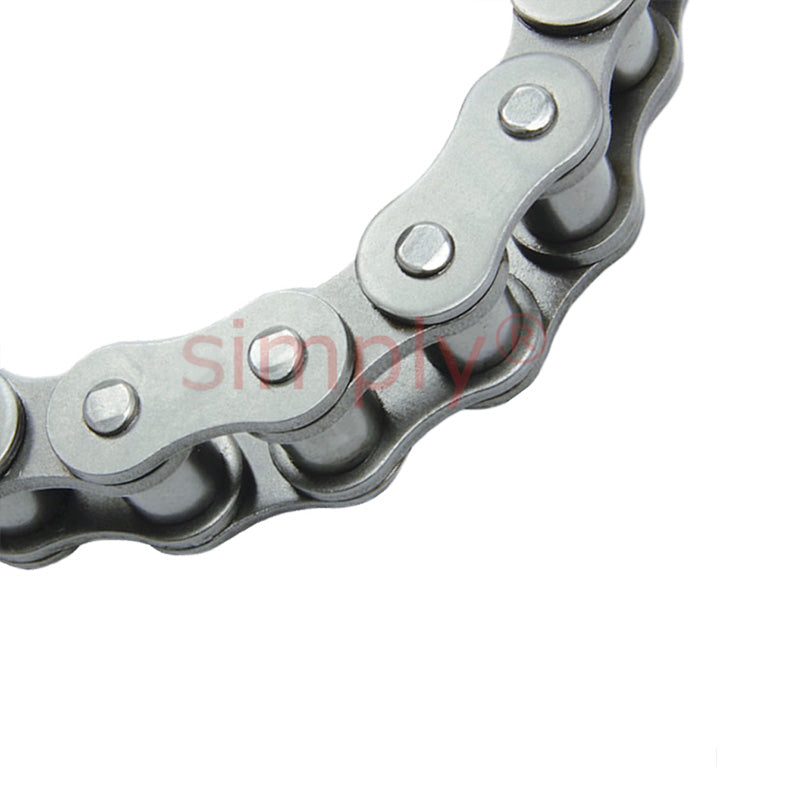

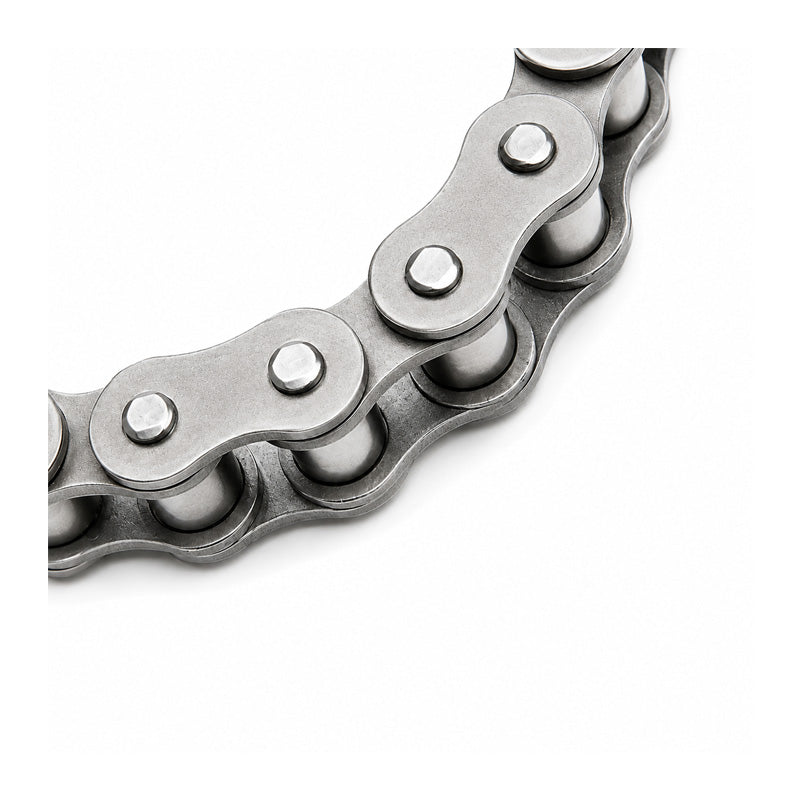

Major Brand 083-1 BS Narrow Section Simplex Roller Chain 1/2 inch Pitch 5 Metres
Major Brand 083-1 BS Narrow Section Simplex Roller Chain 1/2 inch Pitch 5 Metres
Regular price
€38,19
ex VAT
Regular price
Sale price
€38,19
ex VAT
Equivalent to: 08B1 415B
In stock
Price Break
2+
€29,09
5+
€27,45
10+
€27,12
29+
€26,80
49+
€26,47
75+
€26,14
100+
€24,51
200+
€24,18
250+
€23,86
500+
€23,53
1000+
€22,88
Description
Description
This product specifically requires Dunlop chain links due to the narrow width.
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
Equivalent: 08B1 415B
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch (Narrow Section)
Technical
Technical
| Pitch (P) | 12.7mm = 0.5 (1/2) inch (Narrow Section) |
|---|---|
| Roller Diameter (D1 max) | 7.75mm |
| Width between inner plates (B1 min) | 4.88mm |
| Pin dia meter (D2 max) | 3.96mm |
| Pin length (L max) | 11.95mm |
| Pin length (Lc max) | 13.45mm |
| Inner plate depth (H2 max) | 10.3mm |
| Plate thickness (T max) | 1.4mm |
| Ultimate tensile strength (Q min) kN/LB | 11.6/2608 |
| Average tensile strength (Q0) kN | 13.2 |
| Weight per meter (q) kg/m | 0.69 |
