SKU: 06B-2-NO26-MB
Major Brand 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Major Brand 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
€4,25
ex VAT
Regular price
Sale price
€4,25
ex VAT
Equivalent to: 06B-2-CL
In stock
Price Break
2+
€3,24
5+
€3,05
10+
€3,02
29+
€2,98
49+
€2,95
75+
€2,91
100+
€2,73
200+
€2,69
250+
€2,65
500+
€2,62
1000+
€2,55
Description
Description

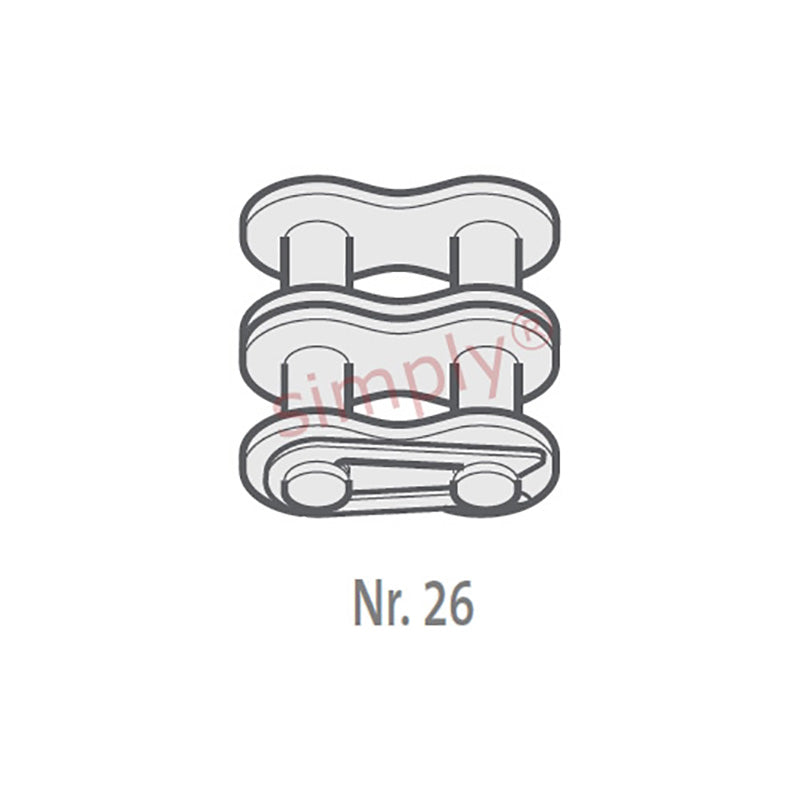

Branded CL / No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 06B-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H2) | 23.5mm |
| Connecting Link Extension max (J) | 1mm |
| Transverse Pitch nom (K) | 10.24mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.002kg/m |
