SKU: 05B-1-BB-NO30-RENOLD
Renold Blue Box 05B-1-NO30 BS Simplex Double Cranked Link 5/16 inch Pitch
Renold Blue Box 05B-1-NO30 BS Simplex Double Cranked Link 5/16 inch Pitch
Regular price
€10,62
ex VAT
Regular price
Sale price
€10,62
ex VAT
In stock
Price Break
2+
€8,09
5+
€7,64
10+
€7,55
29+
€7,46
49+
€7,37
75+
€7,27
100+
€6,82
200+
€6,73
250+
€6,64
500+
€6,55
1000+
€6,37
Description
Description

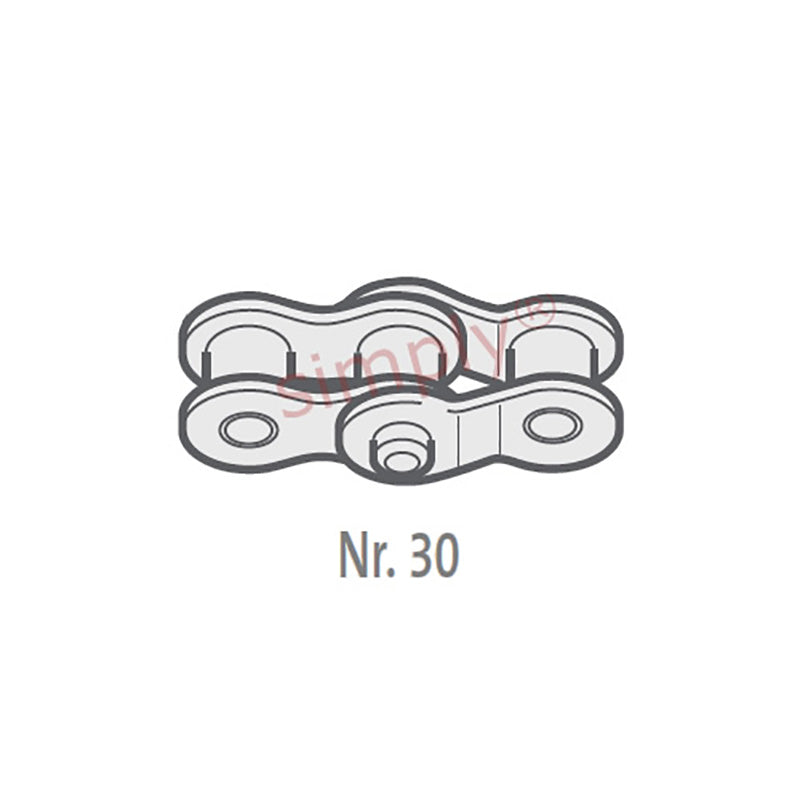

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 7.93mm = 0.312 (5/16) inch
Technical
Technical
| Pitch (A) | 0.315 inch |
|---|---|
| Pitch (A) | 7.93mm |
| Inside Width min (B) | 3mm |
| Roller Diameter max (C) | 5mm |
| Plate Height max (D) | 7.11mm |
| Plate Width Inner max (E) | 0.76mm |
| Plate Width Outer max (F) | 0.76mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H1) | 8.6mm |
| Connecting Link Extension max (J) | 1.5mm |
| ISO606 Tensile Strength min | 4400 N |
| Weight | 0.2kg/m |
