Renold Blue Box 05B-1-NO26 BS Simplex Connecting Link With Spring Clip 5/16 inch Pitch
Renold Blue Box 05B-1-NO26 BS Simplex Connecting Link With Spring Clip 5/16 inch Pitch
Regular price
€6,83
ex VAT
Regular price
Sale price
€6,83
ex VAT
In stock
Price Break
10+
€6,08
19+
€5,74
29+
€5,67
39+
€5,60
49+
€5,53
74+
€5,46
99+
€5,12
199+
€5,05
249+
€4,99
499+
€4,92
999+
€4,78
Couldn't load pickup availability
Description
Description

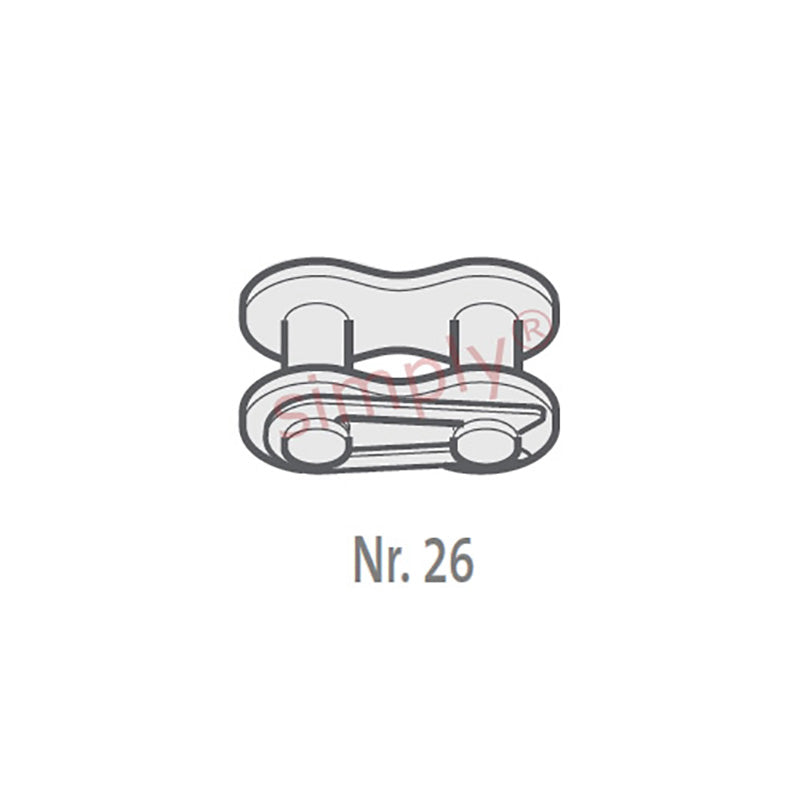

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 7.93mm = 0.312 (5/16) inch
Technical
Technical
| Pitch (A) | 0.315 inch |
|---|---|
| Pitch (A) | 7.93mm |
| Inside Width min (B) | 3mm |
| Roller Diameter max (C) | 5mm |
| Plate Height max (D) | 7.11mm |
| Plate Width Inner max (E) | 0.76mm |
| Plate Width Outer max (F) | 0.76mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H1) | 8.6mm |
| Connecting Link Extension max (J) | 1.5mm |
| ISO606 Tensile Strength min | 4400 N |
| Weight | 0.2kg/m |
