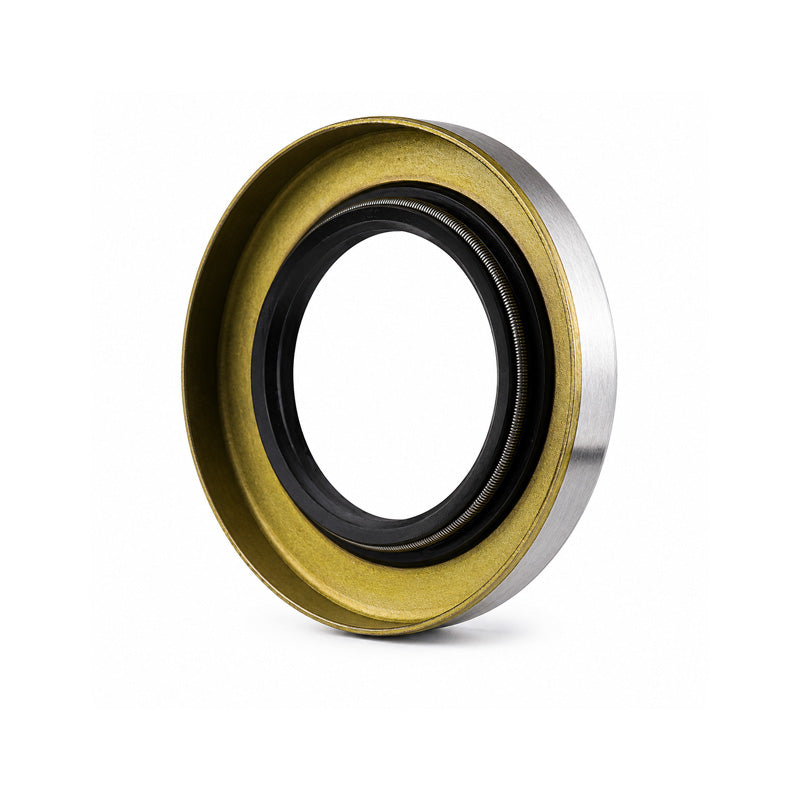

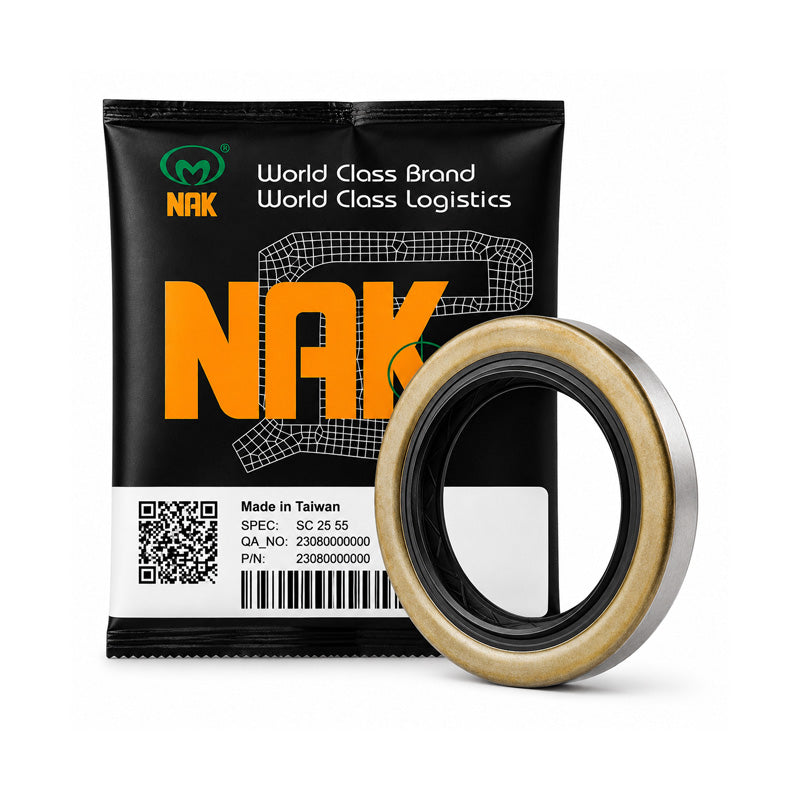

NAK 0.625x1x0.25 inch Metal Cased Lead-in Chamfer Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Garter Spring TM

NAK TM Nitrile Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TM type seals are often used in larger shaft sizes or when a smaller shaft requires extra strength. This is due to the metal-cased outside diameter which has a very stable construction and offers a better-protected sealing member in comparison to the open-backed style. The TM type oil seals feature a lead-in chamfer and have an additional inner rubber lining particularly fit for protecting the case from erosive fluid. The TM features a sealing nitrile rubber lip on the insid (Seals under 5mm width may not always feature a spring.)
Benefits: Excellent wear resistance, good running properties, high resistance to chemicals and petroleum-based fuels including petrol, diesel and LPG.

Brand / Quality:

NAK - High Quality

Inside Diameter:

15.88mm = 0.625 (5/8) inch

Outside Diameter:

25.4mm = 1 inch

Width:

6.35mm = 0.25 (1/4) inch

Seals / Shields:

Nitrile

Style:

TM

Colour:

Black
